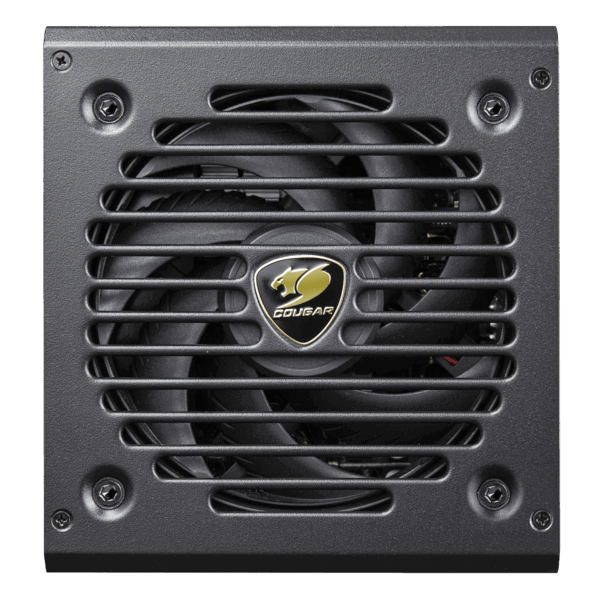

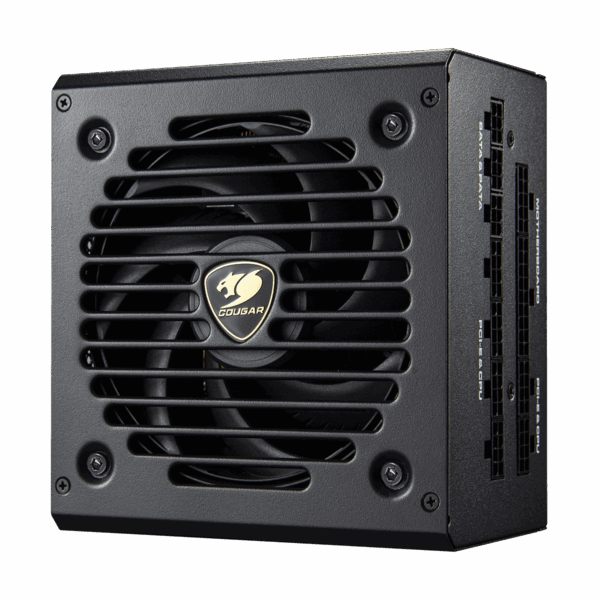

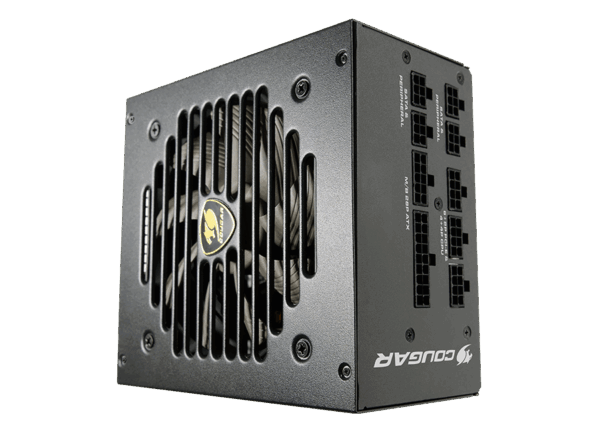

COUGAR GEX750 750W 80 Plus Gold Fully Modular ATX Power Supply

KSh 13,500.00

COUGAR GEX750 750W 80 Plus Gold Fully Modular ATX Power Supply
750W Single +12V Rail
120mm Cooling Fan
ATX Form Factor
4 x PCIe 6+2-Pin Connectors
8 x SATA Connectors
6 x Peripheral Connectors
80 Plus Gold Efficiency Rating
Hydro Bearing Fan

WhatsApp us

GEX 750

Name: COUGAR GEX750 750W 80 Plus Gold Fully Modular ATX Power Supply - Gamers Arena Custom Pc
Price: 13500.00 KES
Availability: InStock

COUGAR GEX is a high-quality 80Plus Gold certified PSU with flawless power delivery at 40°C environments. Efficient, silent and durable, GEX is the best answer for those looking for the best value in PSUs.

Efficiency

GEX features a highly efficient design that surpasses the 80Plus Gold standard, to help you save money on your electricity bill.

Extreme Cooling System

Using COUGAR’s exclusive 120 mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.

Durability

Firstly, GEX has been designed and thoroughly tested to perform optimally in 40ºC working temperature environments.

Second, it includes 105°C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply.

Stability

GEX’s LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs, with an extremely tight 3% voltage regulation to deliver a stable operation.

Compact

Flat and long modular cables for better airflow and a tidier case
100% external cable management: get less cable clutter and a cleaner build!

Features

80 PLUS Gold Certified

Up to 91% efficiency power conversion to cut down your electricity bill

Fully Modular Power Supply Unit

Connect only the cables you need for less clutter and better airflow

COUGAR HDB Fan

Hydro Dynamic Bearing Fan: Extended durability and lower noise levels

Superior fan Curve Tuning

Advanced technology for noise minimization

Flawless Operation at 40°C

Powerful performance at 40°C ambient temperature

Ultra-stable Voltage Outputs

DC to DC technology for enhanced voltage stability

Dimension

160 x 150 x 86 (mm)

Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP

Maximum safety for your key system components

The GEX series by COUGAR do deliver its promise of being an 80 Plus Gold rated power supply starting from a 650 to 1050. You’re good to go now clear results definitely have a lower percentage but it still hits the 80 plus gold rating versus our results.

Specifications

Model Name	AC Input	DC output
Model Name	AC Input	+3.3V	+5V	+12V	-12V	+5Vsb	Total
GEX650	AC100-240V 50-60Hz 10-5A	18A	20A	54.1A	0.3A	3A	650W
GEX650	AC100-240V 50-60Hz 10-5A	100W		649.2W	0.3A	3A	650W
GEX750	AC100-240V 50-60Hz 10-5A	18A	20A	62.5A	0.3A	3A	750W
GEX750	AC100-240V 50-60Hz 10-5A	100W		750W	0.3A	3A	750W
GEX850	AC100-240V 50-60Hz 12-6A	20A	20A	70.8A	0.3A	3A	850W
GEX850	AC100-240V 50-60Hz 12-6A	120W		849.6W	0.3A	3A	850W

Connector	Main	CPU	Peripherals	S-ATA	PCI-E
Pin	24(20+4) Pins	8(4+4) Pins	4 Pins	5 Pins	8(6+2) Pins
GEX650	1	2	6	8	4
GEX750	1	2	6	8	4
GEX850	1	2	6	8	6

Packing Data

	GEX650	GEX750	GEX850
Product Number (P/N)	31GE065002P01	31GE075002P01	31GE085001P01
Model Number	GEX650	GEX750	GEX850
EAN CODE	4710483770210	4710483770227	4710483770234
EAN CODE (UK)	4710483771118	4710483771125	4710483771132
UPC CODE	192554001722	192554001739	192554001746
JAN CODE	4541995034299	4541995034305	4541995034312
Individual W/O Packaging Weight (N.Weight)	1.46 (Kg)		1.56 (Kg)
Individual Packaging Weight (G.Weight)	2.58 (Kg)		2.76 (Kg)
Individual Size W/O Packaging (LxWxH)	160 x 150 x 86 (mm)
Individual Packaging Size (LxWxH)	331 X 229 x 107 (mm)

Protection

UVP (Under Voltage Protection)

If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OCP (Overcurrent Protection)

If the current on a single line is higher than indicated, the PSU automatically switches off.

SCP (Short-Circuit Protection)

In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.

OVP (Over Voltage Protection)

If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

OTP (Over Temperature Protection)

If the temperature gets too high, the PSU automatically switches off.

OPP (Over Power Protection)

If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
