RMe SERIES™

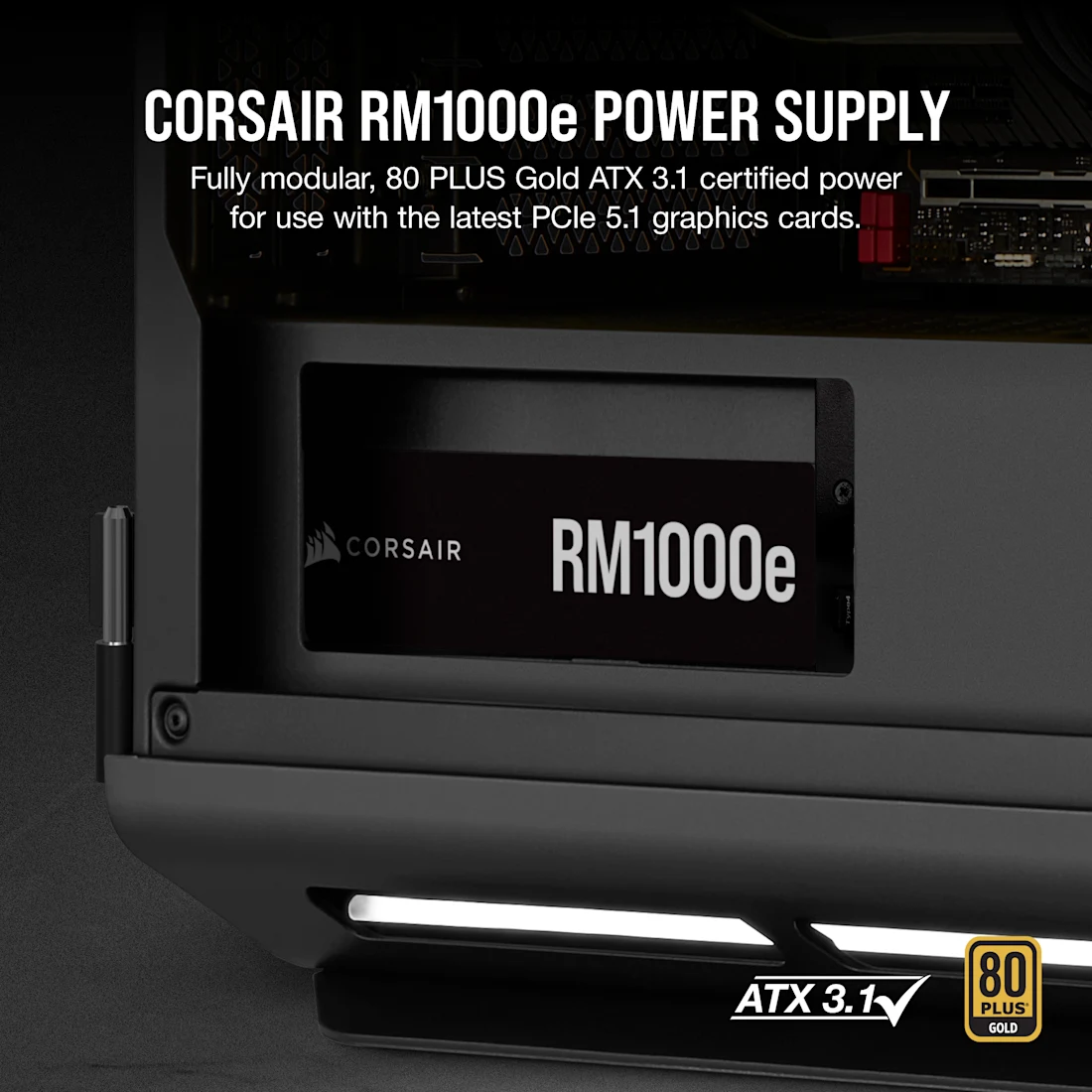

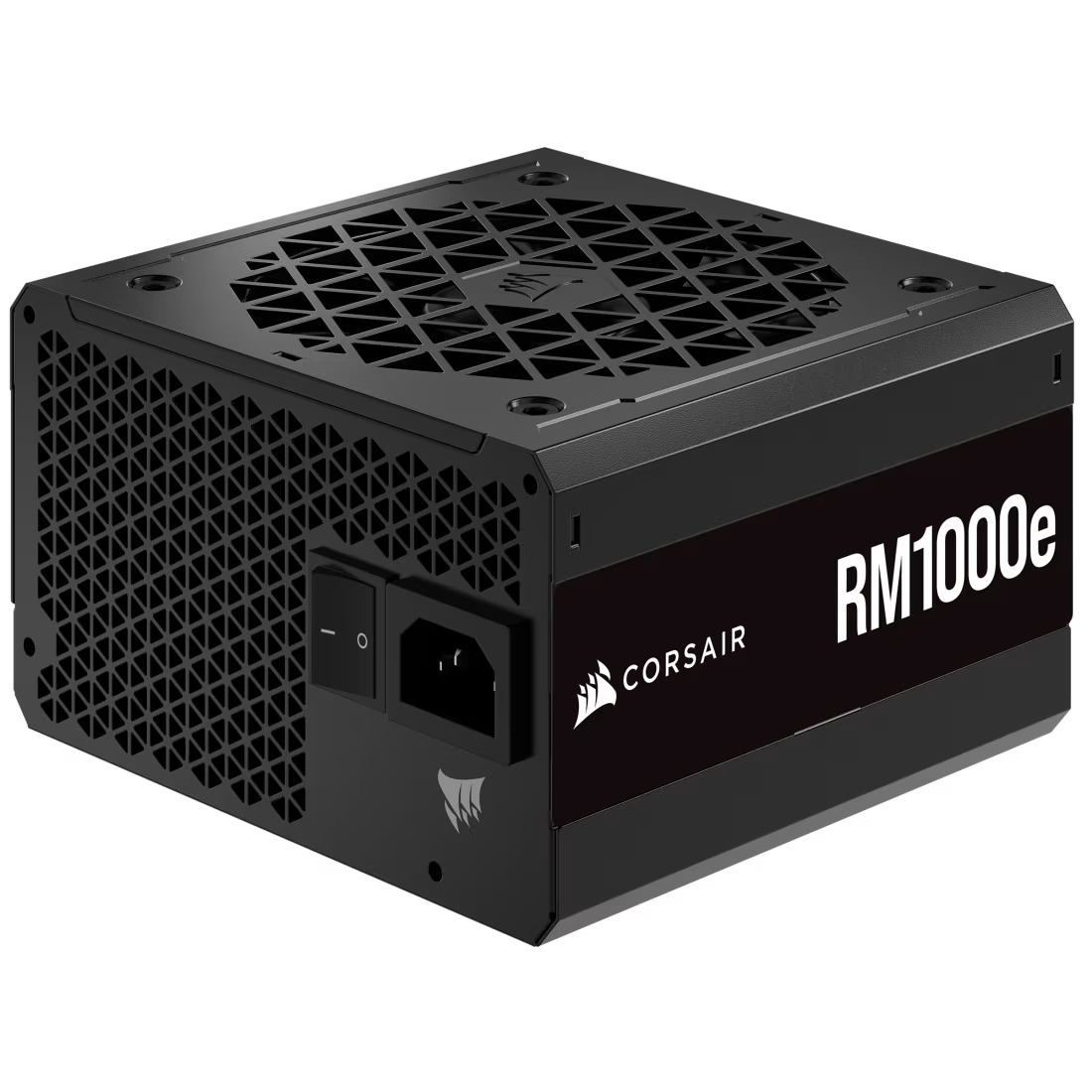

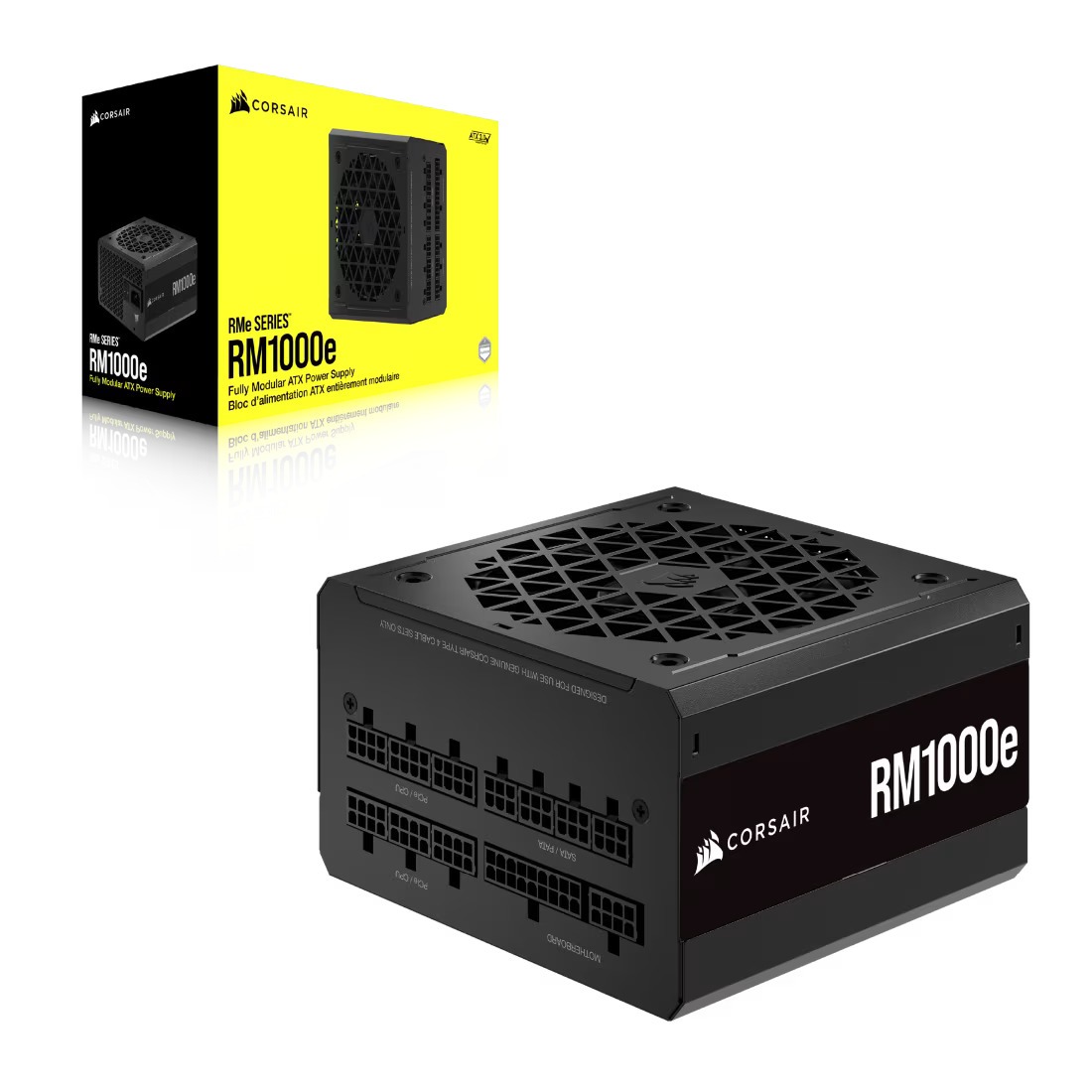

RM1000e POWER SUPPLY
Fully Modular Low-Noise ATX Power Supplies

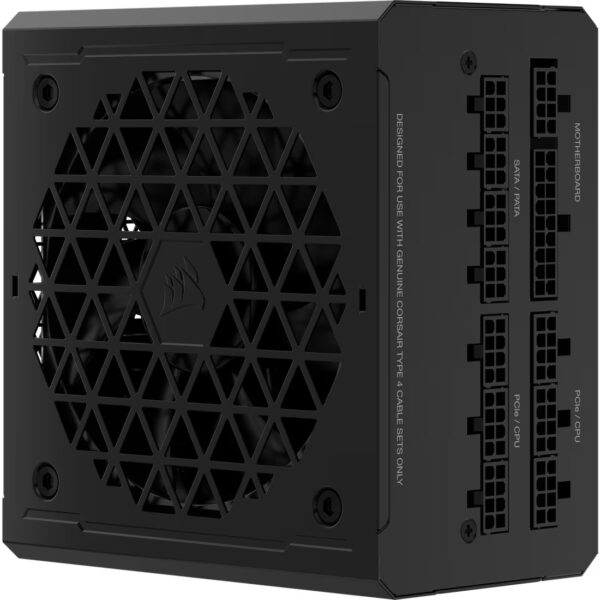

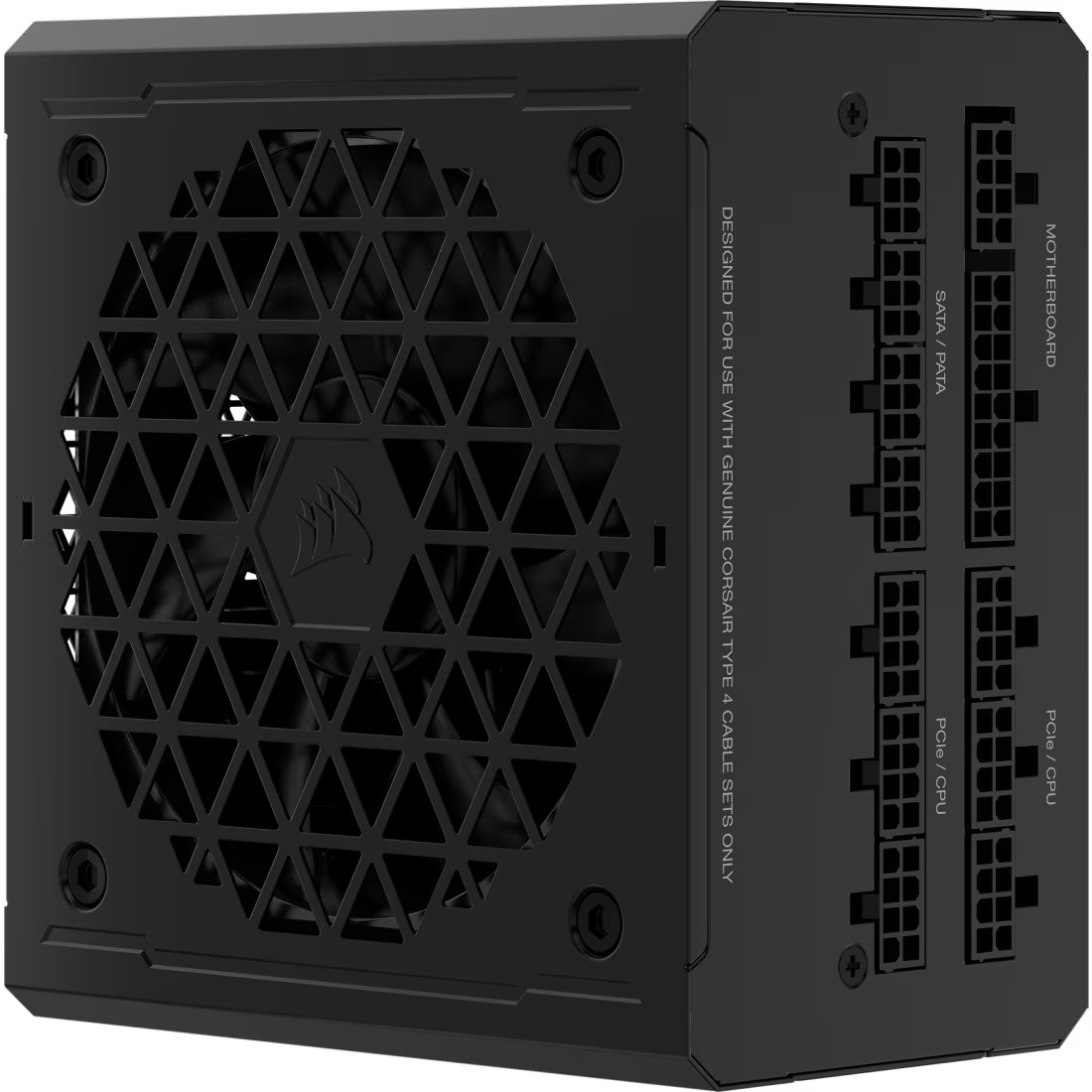

FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
ON THE CUTTING-EDGE
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2×6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
LOW NOISE OPERATION IN A COMPACT SIZE
Shorter than the traditional power supply, the RMe offers more cable space behind your PSU.

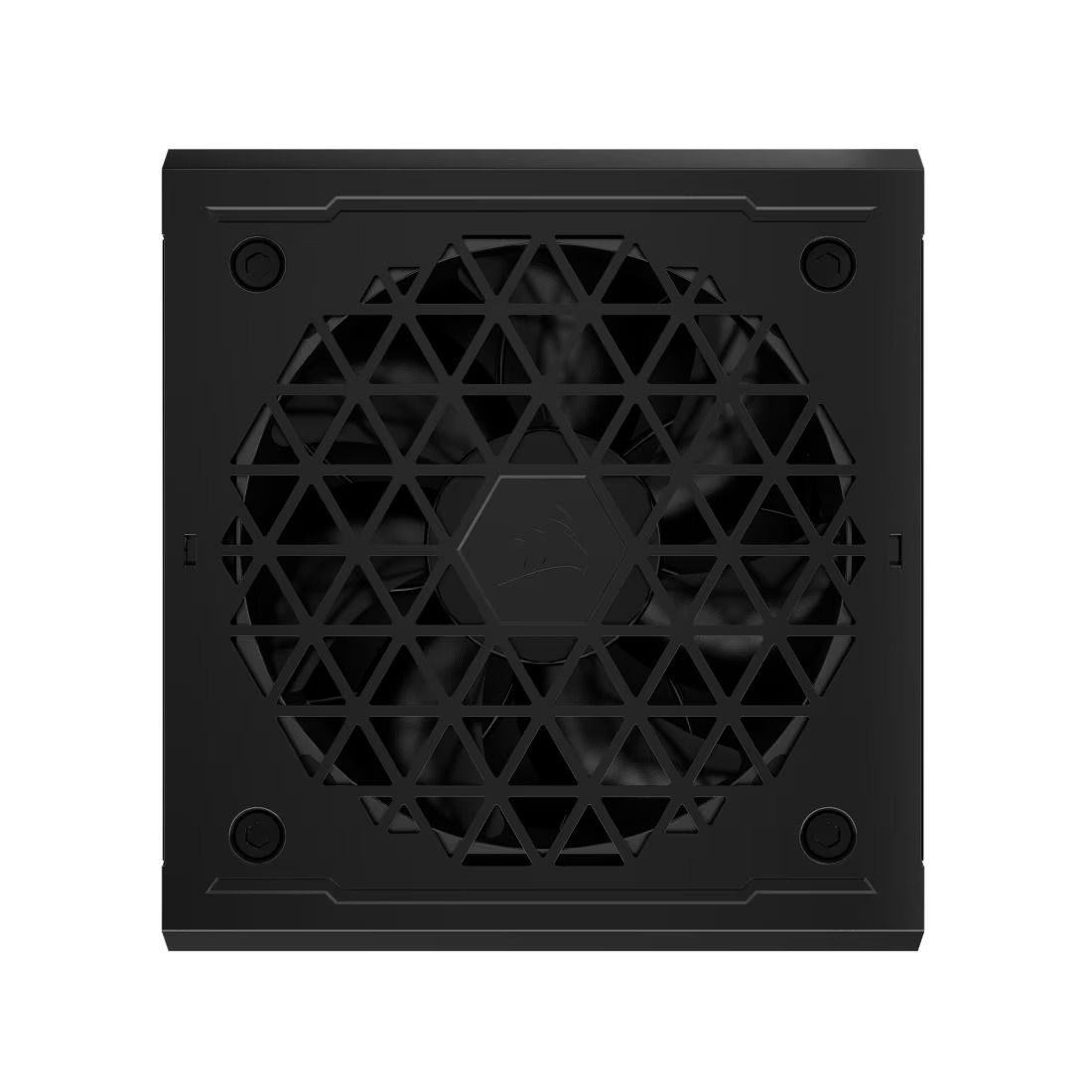

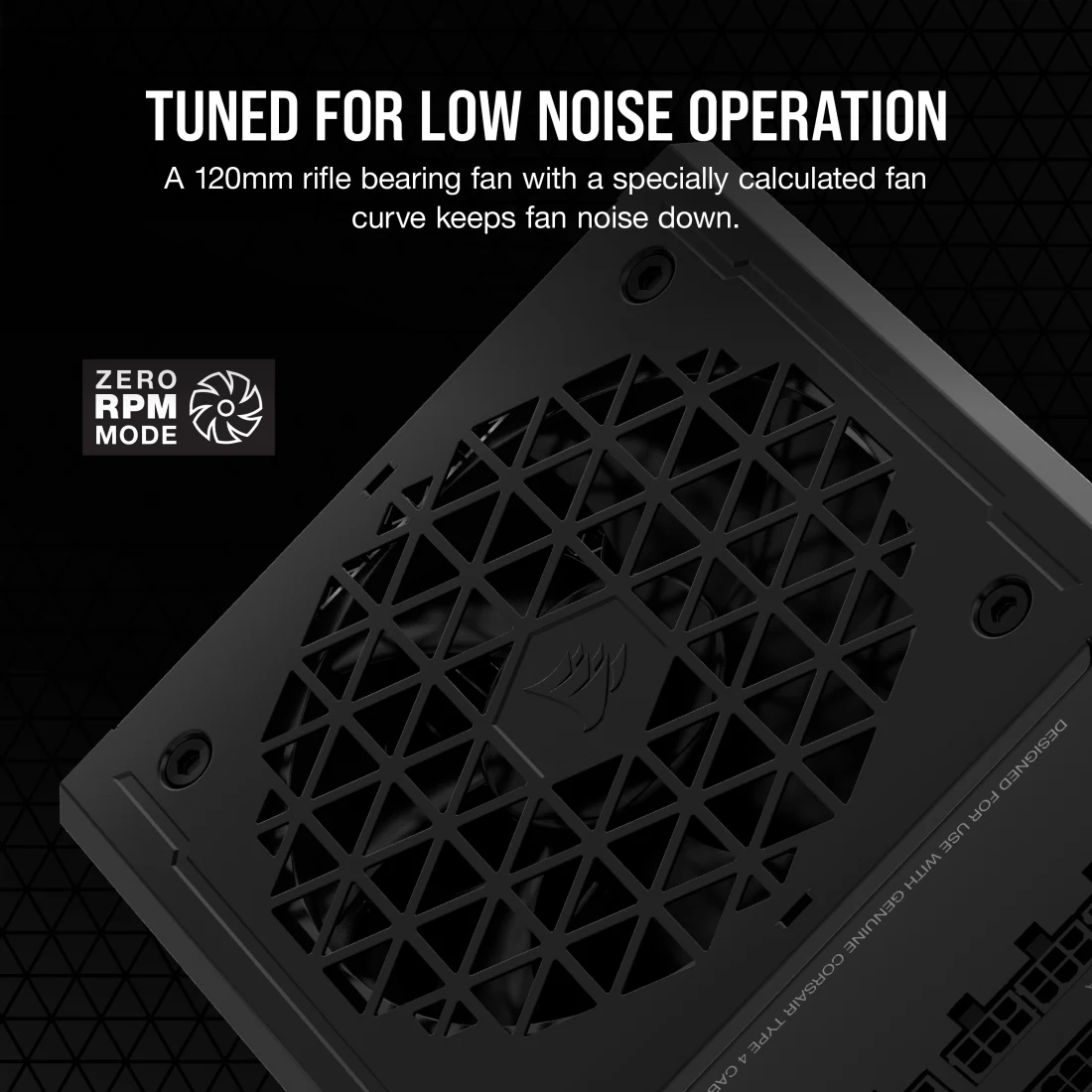

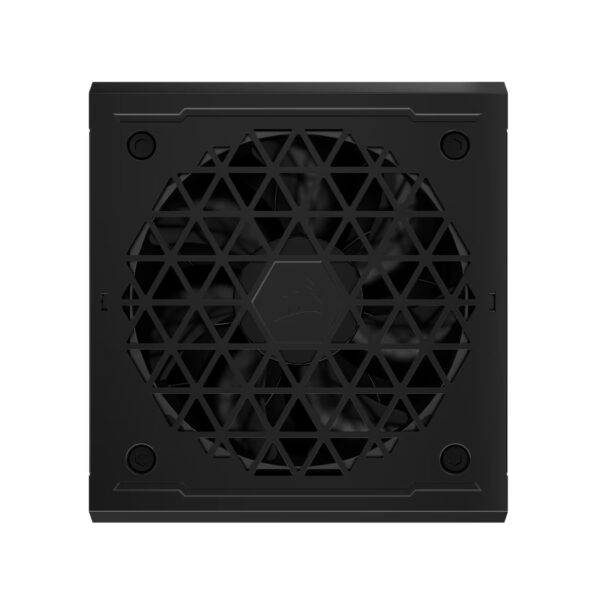

Includes Zero RPM Fan Mode for near-silent operation at lower loads.
LOW NOISE
FAN MODE
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.

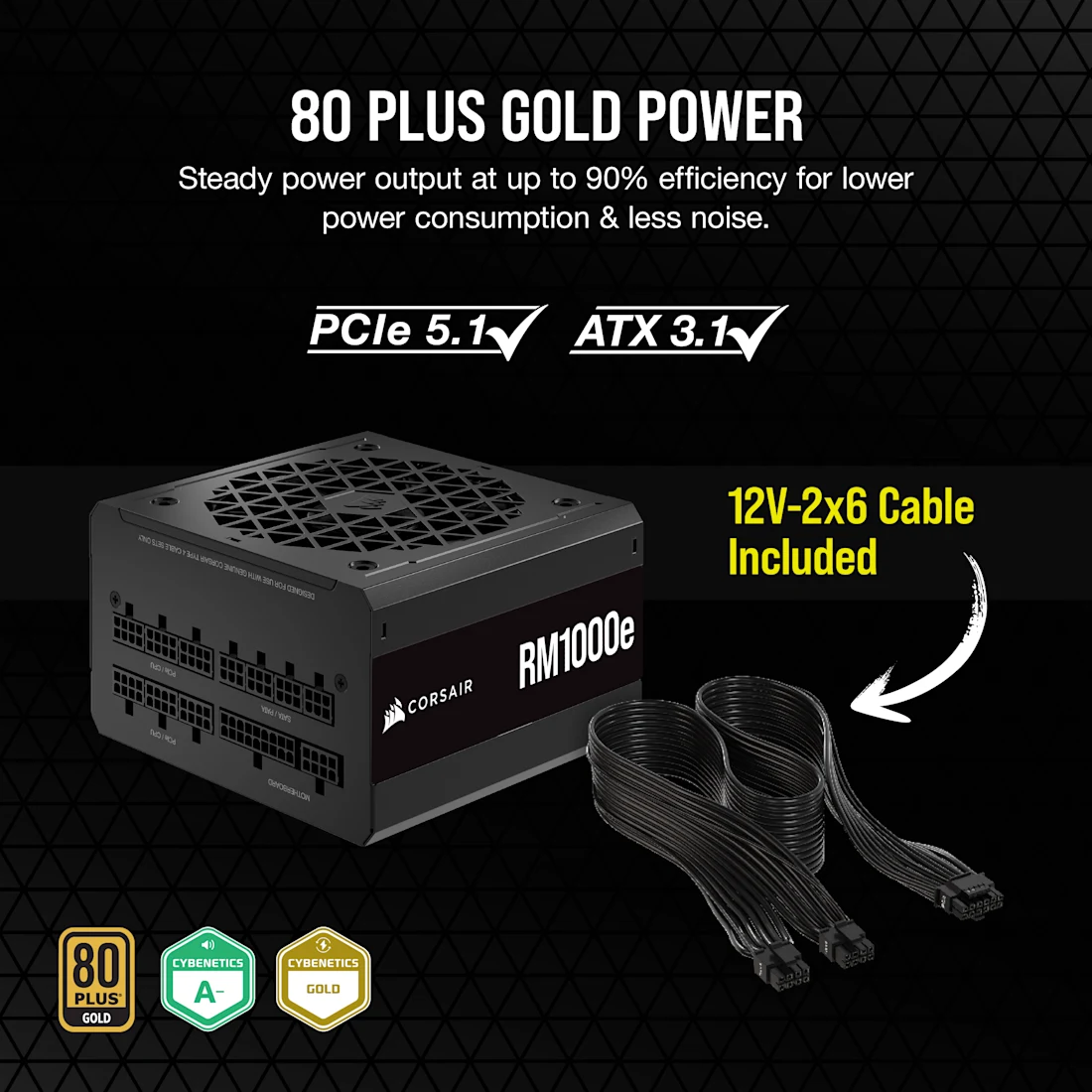

80 PLUS Gold-Certified
Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
RM1000e POWER TABLE
| Model | RPS0179 | |
|---|---|---|
| Part No. | CP-9020264/75-005411 | |
| AC INPUT RATING | ||
| AC Input | 100V-240V | |
| Input Current | 12A-6A | |
| Frequency | 47~63Hz | |
| MAX LOAD | MAX OUTPUT | |
| +3.3V | 20A | 150W |
| +5V | 20A | |
| +12V | 83.3A | 1000W |
| +5VSB | 3A | 15W |
| TOTAL POWER | 1000W | |
RM1000e CABLE LISTING
| QTY | Cable | Connectors per cable |
Total connectors |
Connector Spacing |
Total length | Cable Type |
|---|---|---|---|---|---|---|
| 1 | Modular ATX Cable (24-PIN)
|
1 | 1 | – | 610mm (± 10mm) |
Sleeved |
| 2 | EPS / ATX 12V 8-Pin (4+4)
|
1 | 2 | – | 650mm (± 10mm) |
Flat |
| 1 | 12V-2×6 (12+4) Pin
|
1 | 1 | – | 650mm (± 10mm) |
Flat |
| 2 | PCIe 8-Pin (6+2)
|
1 | 2 | – | 650mm (± 10mm) |
Flat |
| 2 | PCIe 8-Pin (6+2) (6+2)
|
2 | 4 | 600mm, 100mm | 750mm (± 10mm) |
Flat |
| 1 | SATA (3 SATA) Straight
|
3 | 3 | 455mm, 115mm, 115mm, 115mm | 800mm (± 10mm) |
Flat |
| 1 | SATA (4 SATA) Right Angle
|
4 | 4 | 455mm, 115mm, 115mm, 115mm | 800mm (± 10mm) |
Flat |
| 1 | PATA (4-Pin)
|
4 | 4 | 450mm, 100mm, 100mm, 100mm | 750mm (± 10mm) |
Flat |
Tech Specs
| Cybenetics Efficiency | Gold |
|---|---|
| Cybenetics Noise | A- |
| PATA Connector | 4 |
| EPS Connector | 2 |
| SATA Connector | 7 |
| Modern Standby | Yes |
| Dimensions | 140x150x86 |
| Modular | Fully |
| Cable Type | Type 4 |
| PCIe Connector | 3 |
|---|---|
| Zero RPM Mode | Yes |
| Continuous Power W | 1000 Watts |
| ATX Connector | 1 |
| ATX12V Version | 3.1 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Gold |
| Weight | 3.053kg |
