Description

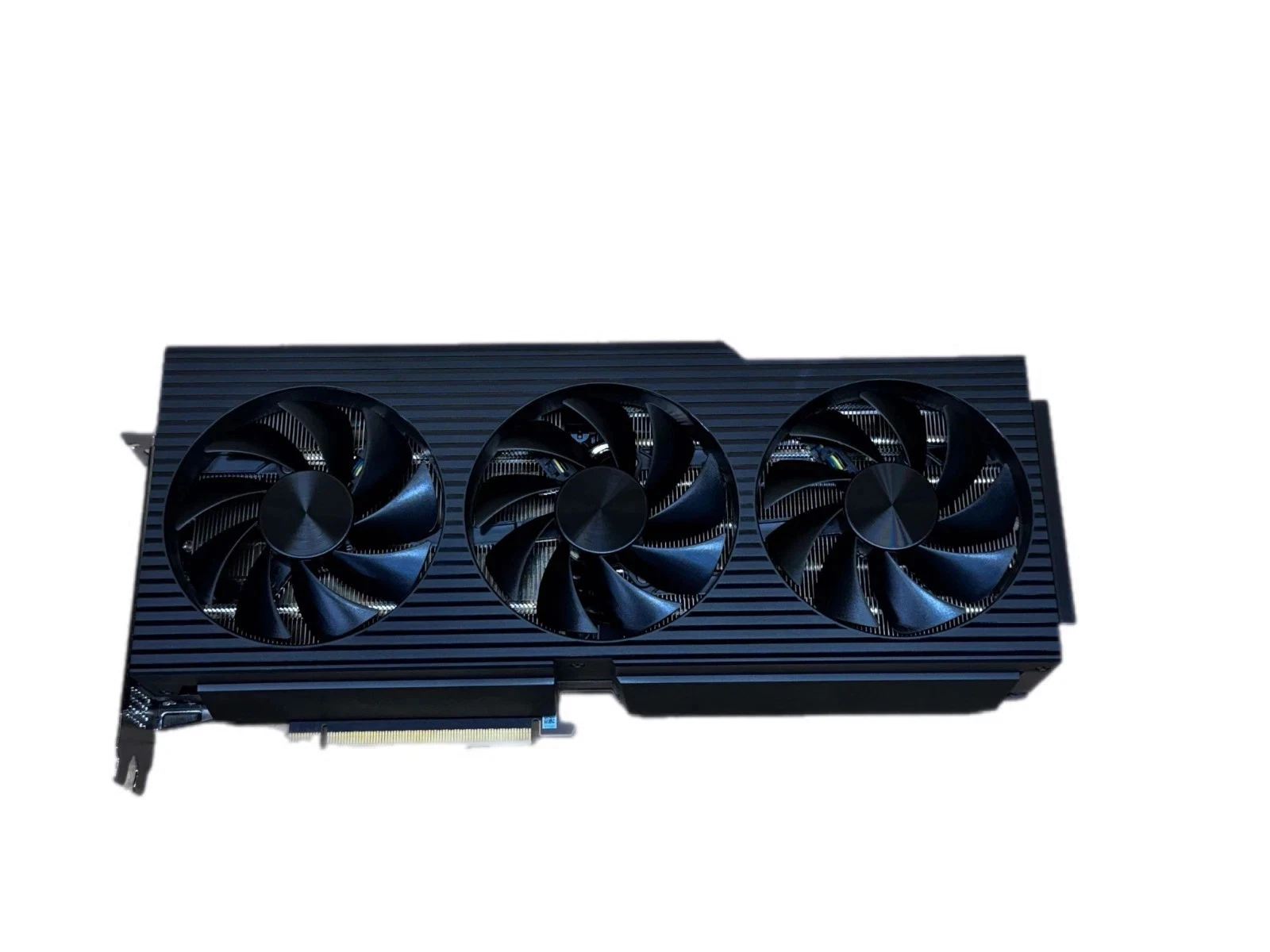

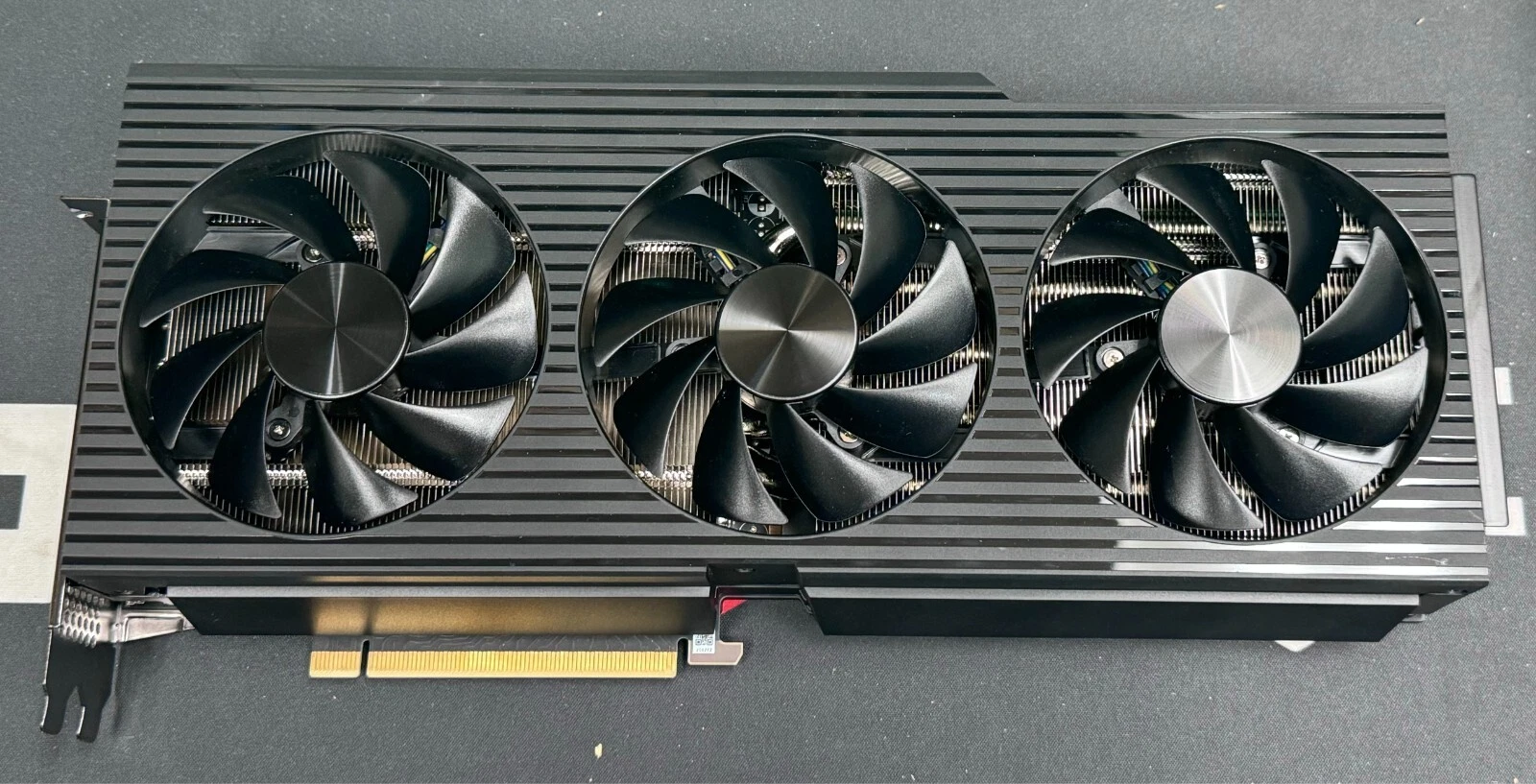

The NVIDIA GeForce RTX 4080 16GB is a high-end enthusiast graphics card built on NVIDIA’s Ada Lovelace architecture (TSMC 4N process). It is primarily engineered for ultra-settings 4K gaming, heavy ray-traced workloads, and intensive creative/AI tasks.
Key Technical Specifications
| Specification | Detail |
| GPU Architecture | Ada Lovelace (AD103-300-A1) |
| CUDA Cores | 9,728 |
| Base Clock / Boost Clock | 2,205 MHz / 2,505 MHz |
| VRAM Configuration | 16 GB GDDR6X |
| Memory Bus / Bandwidth | 256-bit / 716.8 GB/s |
| Tensor / RT Cores | 304 (4th Gen) / 76 (3rd Gen) |
| L2 Cache | 64 MB |
| TDP / Power Draw | 320 W (Recommended PSU: 750W+) |
| Power Connector | 1x 16-pin (12VHPWR) |

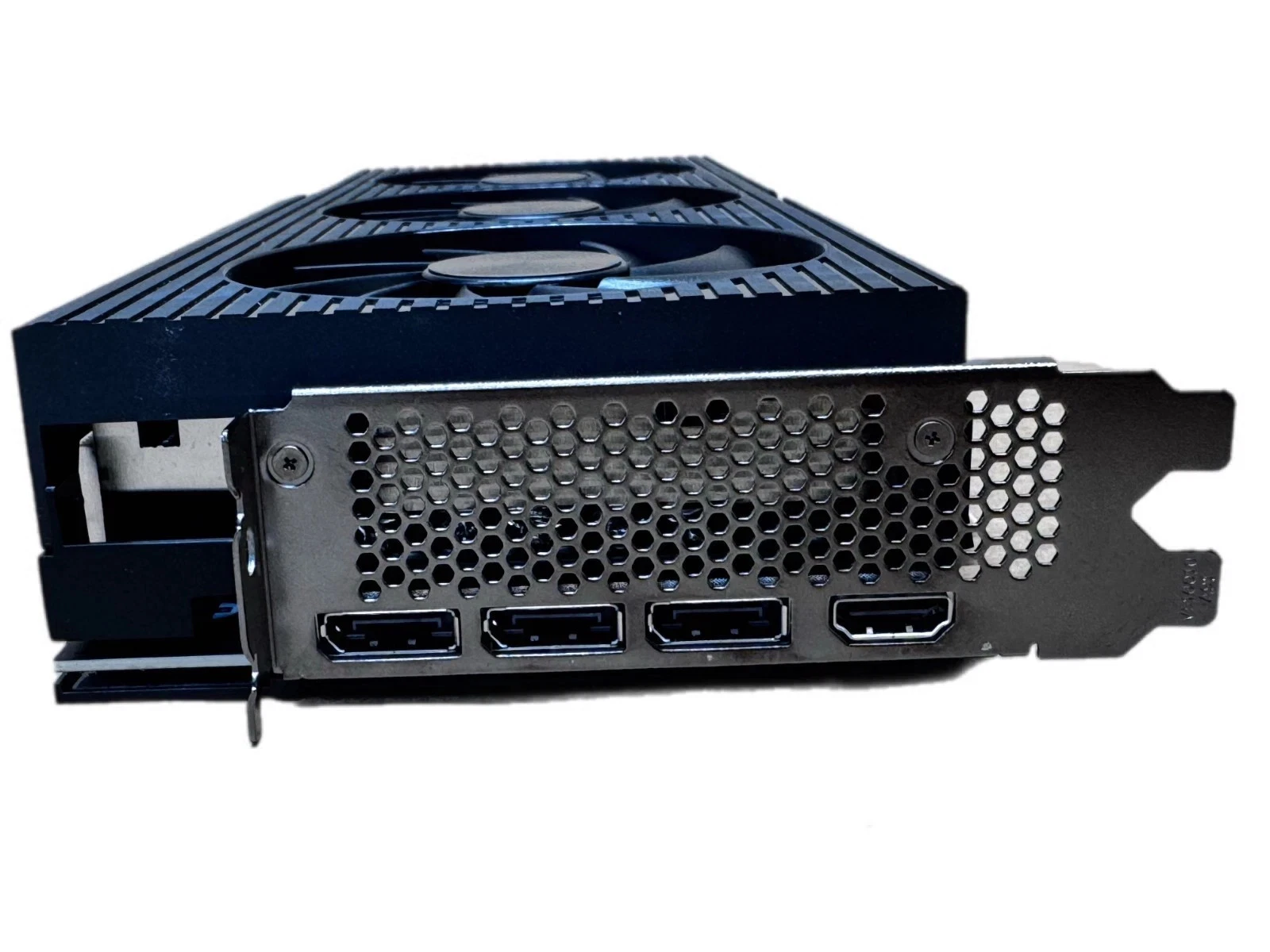

| Display Outputs | 3x DisplayPort 1.4a, 1x HDMI 2.1 |
Core Strengths & Features
-
High-Framerate 4K & 1440p: Easily achieves 60+ FPS in modern AAA titles at native 4K with maximum settings, and well over 120 FPS at 1440p.
-
DLSS 3 & Frame Generation: Features dedicated optical flow hardware that inserts AI-generated frames, drastically boosting frame rates in CPU-bound or heavy path-traced scenarios.
-
Content Creation & Local AI: The 16 GB VRAM buffer and 4th Gen Tensor Cores handle complex Blender renders, DaVinci Resolve color grading/timeline work, and local LLM/Stable Diffusion inference effectively.
-
Energy Efficiency: Compared to prior-generation Ampere cards (like the RTX 3080/3090), the Ada Lovelace architecture delivers significantly higher performance per watt while staying cool under typical gaming loads.
- The NVIDIA GeForce RTX 4080 (16GB) delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics. Its powered by the ultra-efficient NVIDIA Ada Lovelace architecture and 16GB of superfast G6X memory.
Features
Graphics Processing Unit (GPU) /Clock Speed
Powered by the NVIDIA GeForce RTX 4080 (16GB) graphics processing unit (GPU) with a 2.51 GHz boost clock speed.On-board Memory
16GB GDDR6XInterface Compatibility
PCI Express 4.0 and earlier PCI Express 3.0. Offers compatibility with a range of systems.Technologies
9, 728 NVIDIA CUDA Cores, 2.51 GHz Boost Clock, Dedicated Ray Tracing Cores, Dedicated Tensor Cores, NVIDIA DLSS, Game Ready and NVIDIA Studio Drivers, NVIDIA GeForce Experience, NVIDIA Broadcast, NVIDIA G-SYNC, NVIDIA GPU Boost, GDDR6X Graphics Memory, PCI Express Gen 4Microsoft DirectX 12 Ultimate, Vulkan RT APIs, Vulkan 1.3, Open GL 4.6, HDCP 2.3, DisplayPort 1.4 a. Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1 a
API (Application Programming Interface) Support
DirectX 12 Ultimate, Vulkan RT, OpenGL 4.6 supportHDMI and Display Port outputs
Enable flexible connectivitySeries
NVIDIA GeForce “Ada Lovelace” RTX 40-SeriesSystem Requirements
Windows 11 64-bit, Windows 10 64-bit, Linux 64-bit
