Description
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

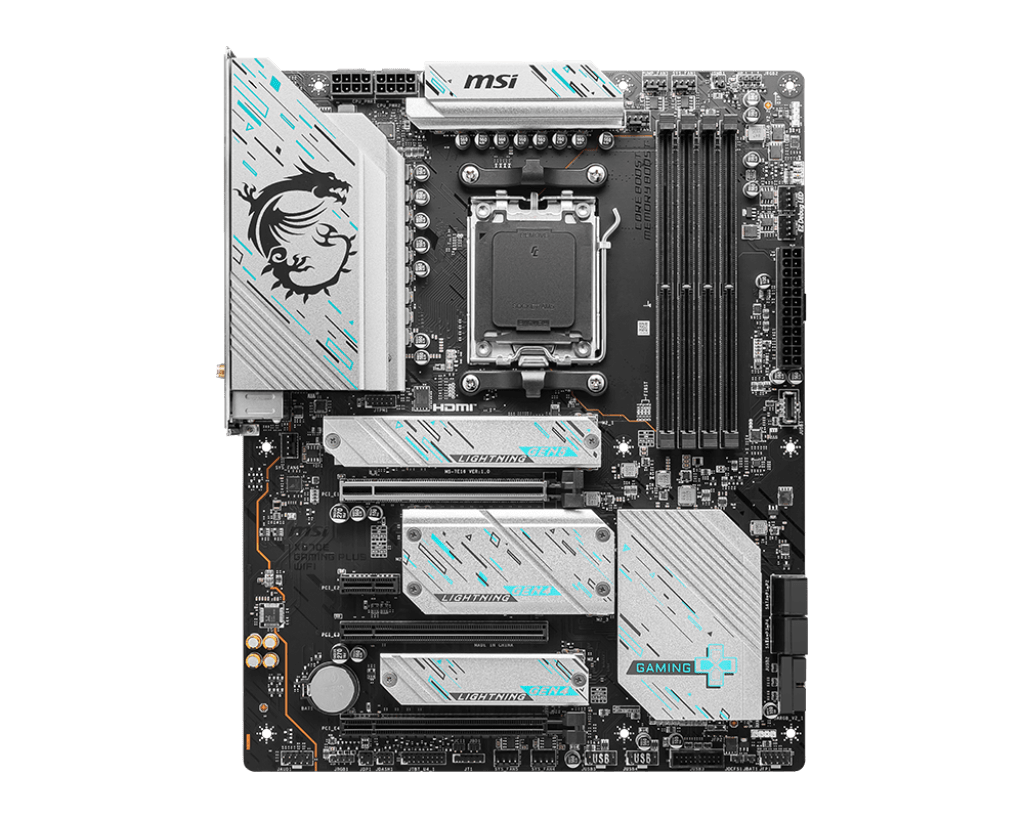

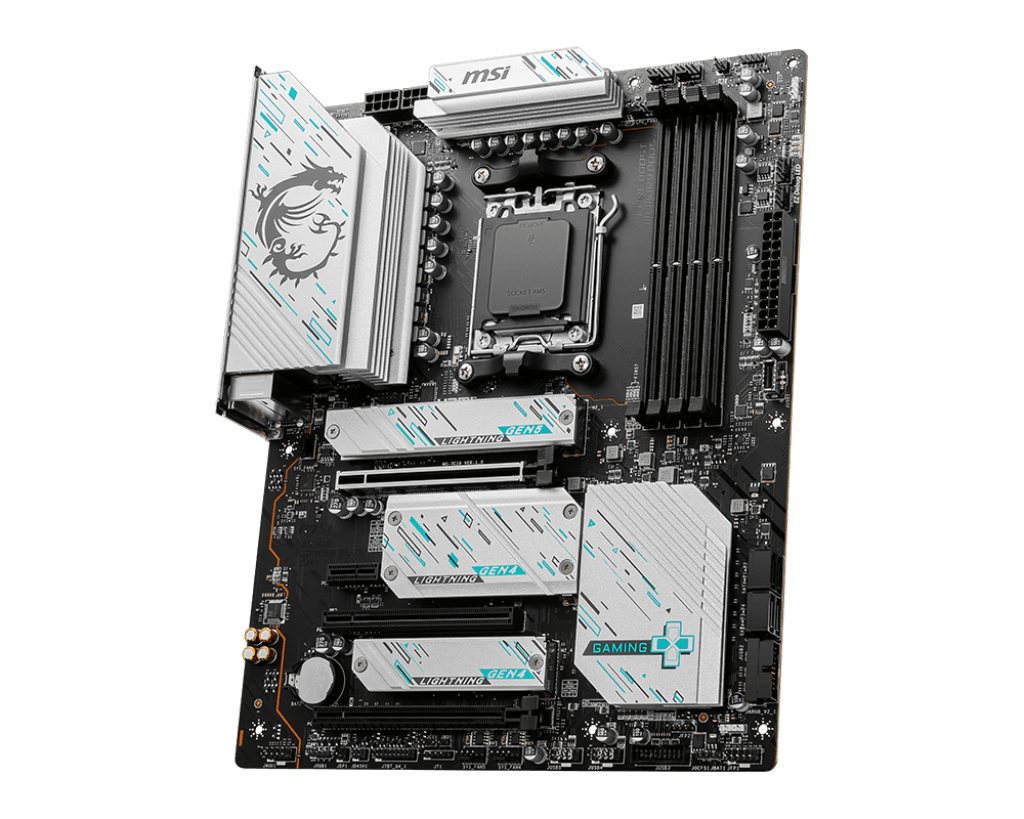

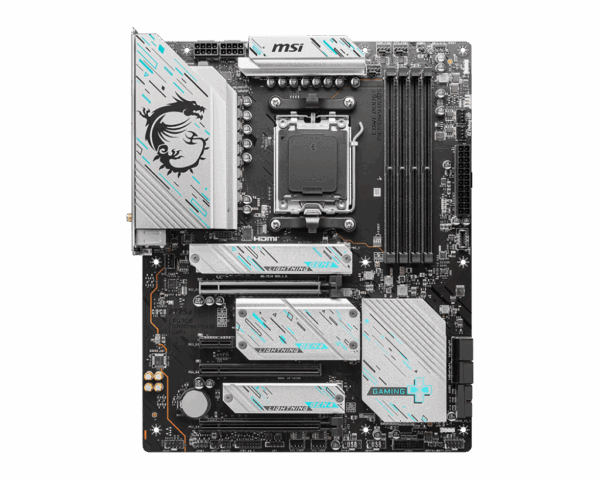

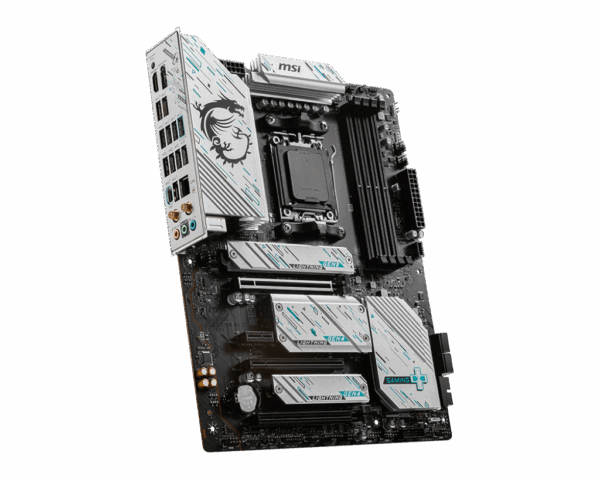

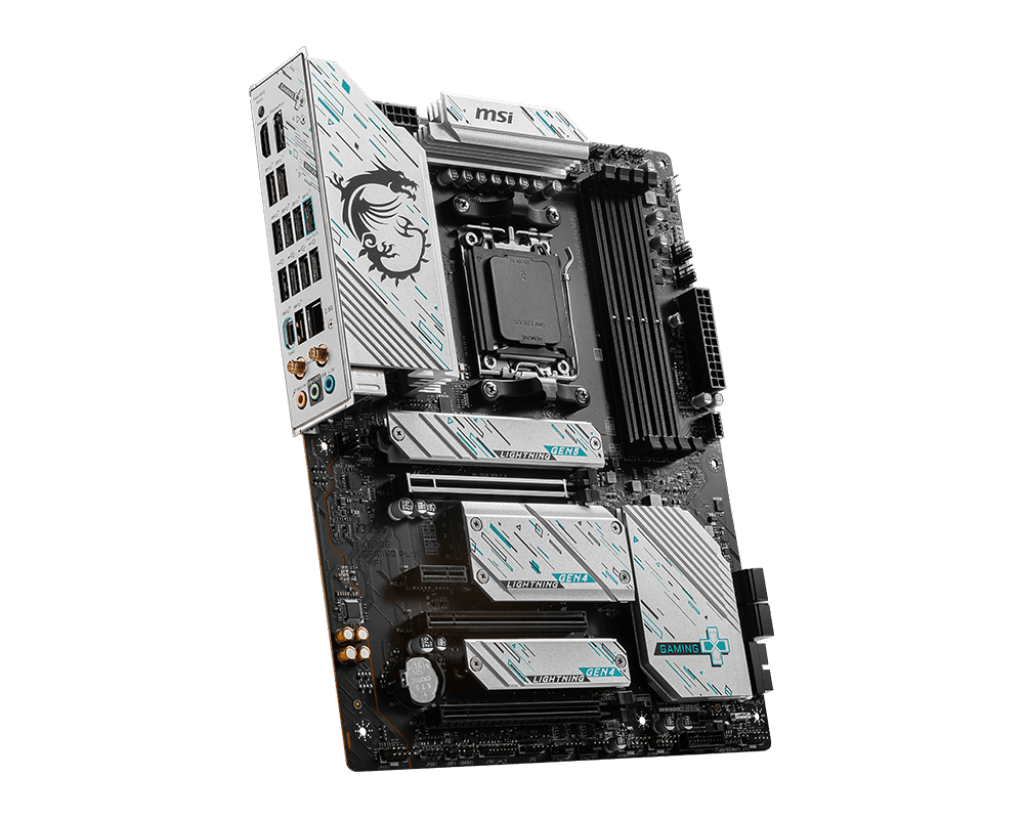

X670E GAMING PLUS WIFI
Win the Competition
The X670E GAMING PLUS WIFI is a gaming oriented ATX motherboard constructed around the latest AMD X670 chipset that balances value with premium hardware.
- Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
- 14 Duet Rail Power System CPU power with 80A SPS
- 1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots, 1 x PCIe 3.0 x1 slot
- 4 x DDR5 DIMMs with Memory Boost: Dual Channel (192GB Max. / 7800MHz OC)
- Lightning Gen5 M.2 with M.2 Shield Frozr
- 8-Channel (7.1) HD Audio with Audio Boost
- USB 3.2 Gen 2×2 Type-C (20Gbps)
- 2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.3
Supports AMD Ryzen 7000 Processors
The X670E GAMING PLUS WIFI motherboard supports AMD Ryzen 7000 processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD X670
14+2+1 Duet Rail Power System with 80A Smart Power Stage
With its dual 8 pin power connectors and exclusive Core Boost technology, the X670E GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 14-Phase Duet-Rail Power (SPS / 80A)
- 2-Phase SOC Power
- 1-Phase MISC Power
Integrated Cooling Features
VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCIe 5.0 x16 slot* (Primary with Steel Armor)
1 x PCIe 3.0 x16 slot
1 x PCIe 4.0×16 slot
1 x PCIe 3.0 x1 slot
*Supports x16/x1/x4
4 x DDR5 Dual Channel (7800+ MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 7800 MHz, supports AMD EXPO.
Gen5 M.2 Connectors
The X670E GAMING PLUS WIFI motherboard features MSI’s latest M.2 slots:
1 x Gen5 x4 128Gb/s slot*
3 x Gen4 x4 64Gb/s slots*
*with M.2 Shield Frozr
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

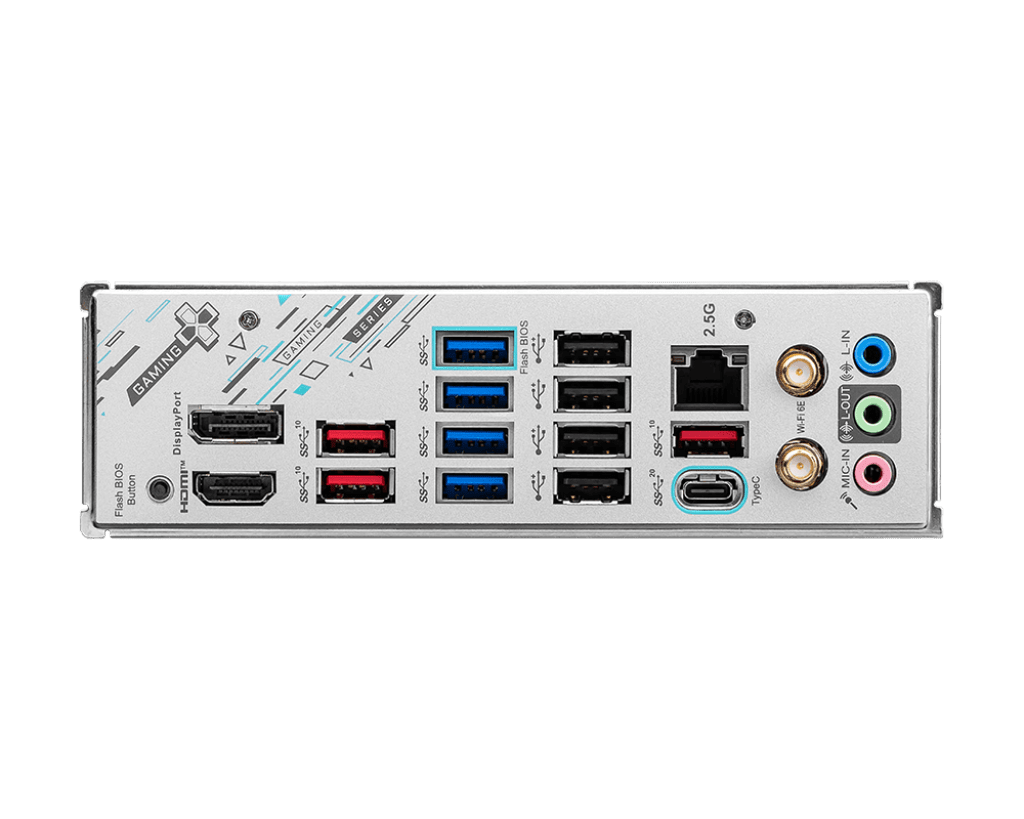

Wi-Fi 6E & Bluetooth 5.3
2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio: 8-Channel (7.1) HD Audio with Audio Boost
- Supports AMD Ryzen 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
