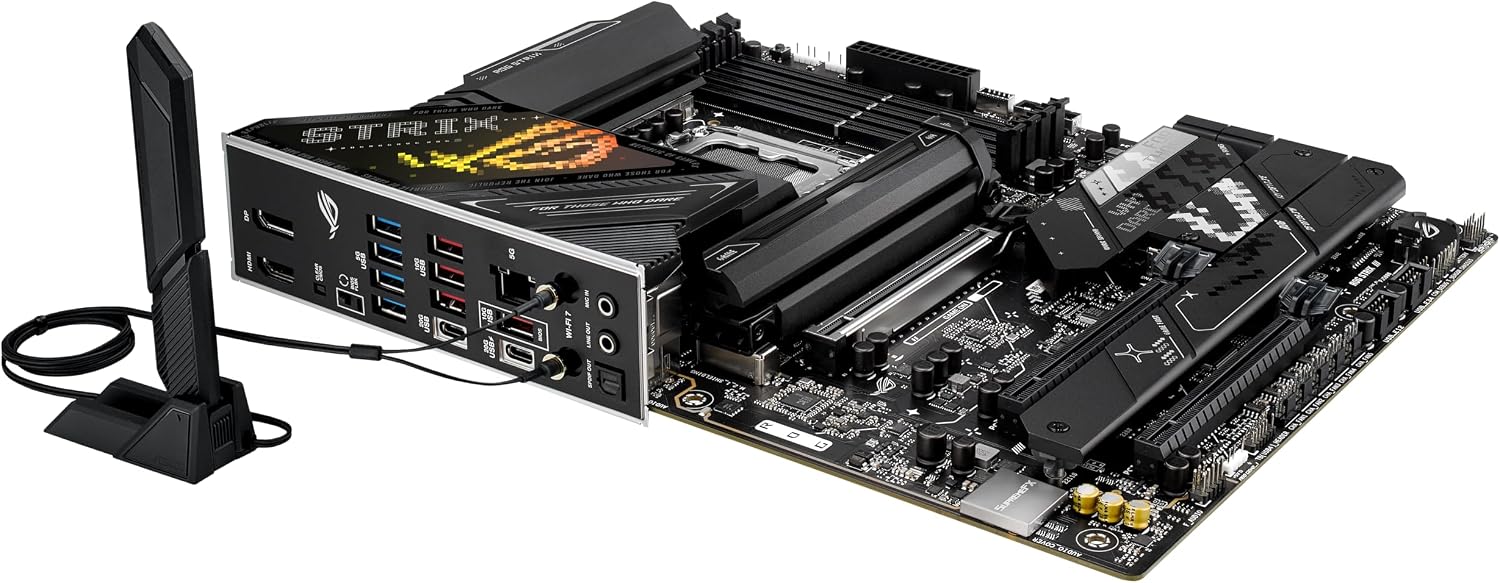

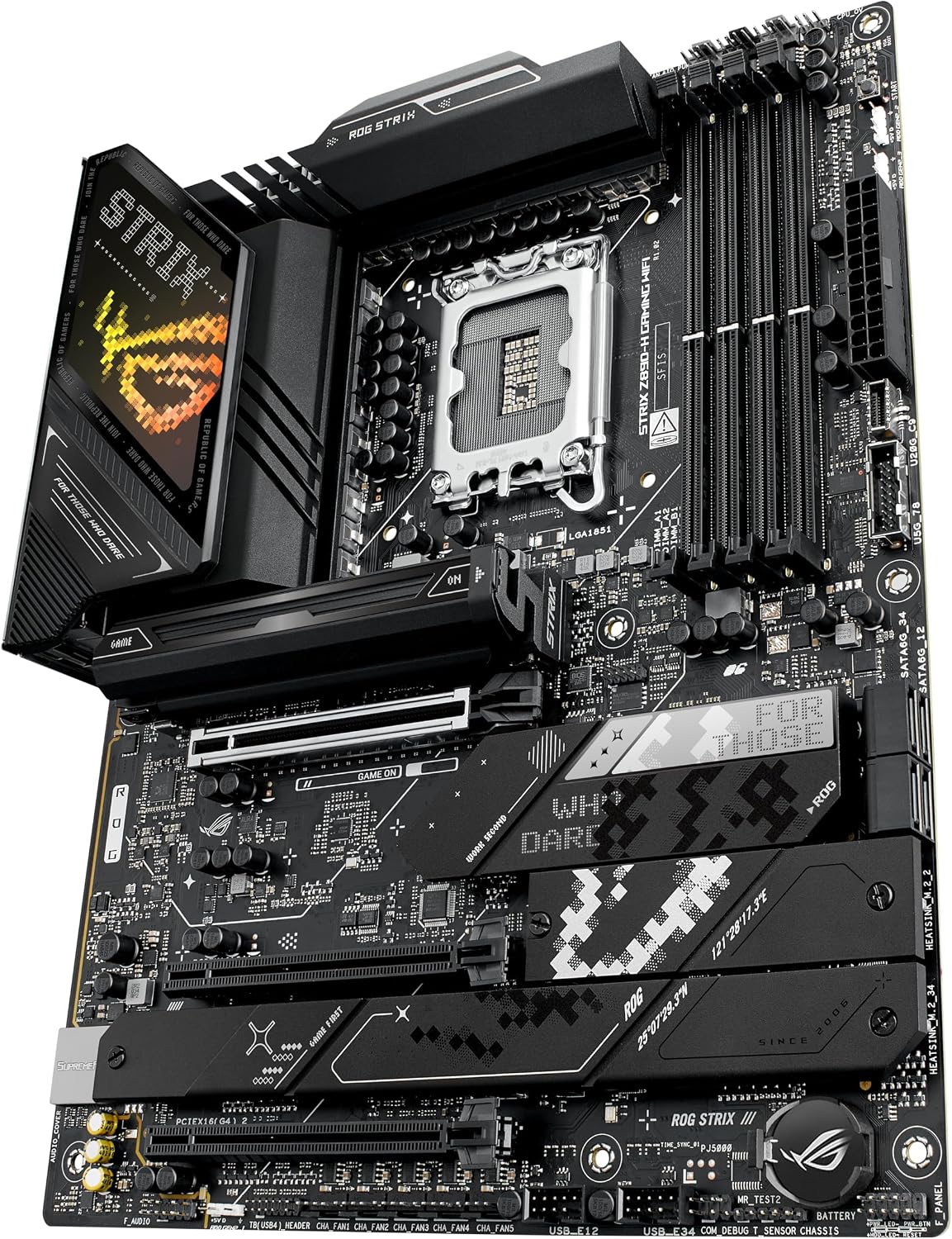

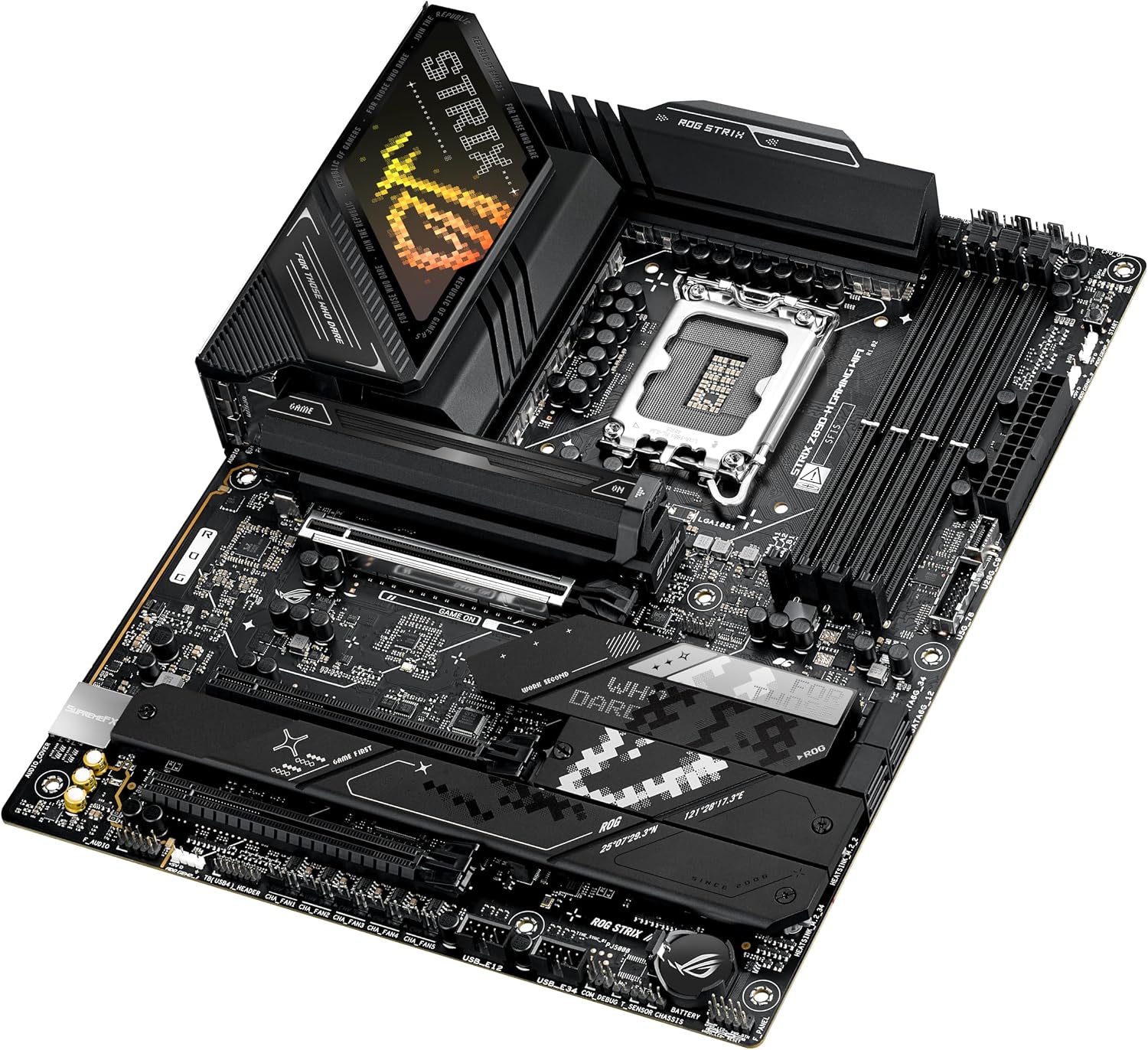

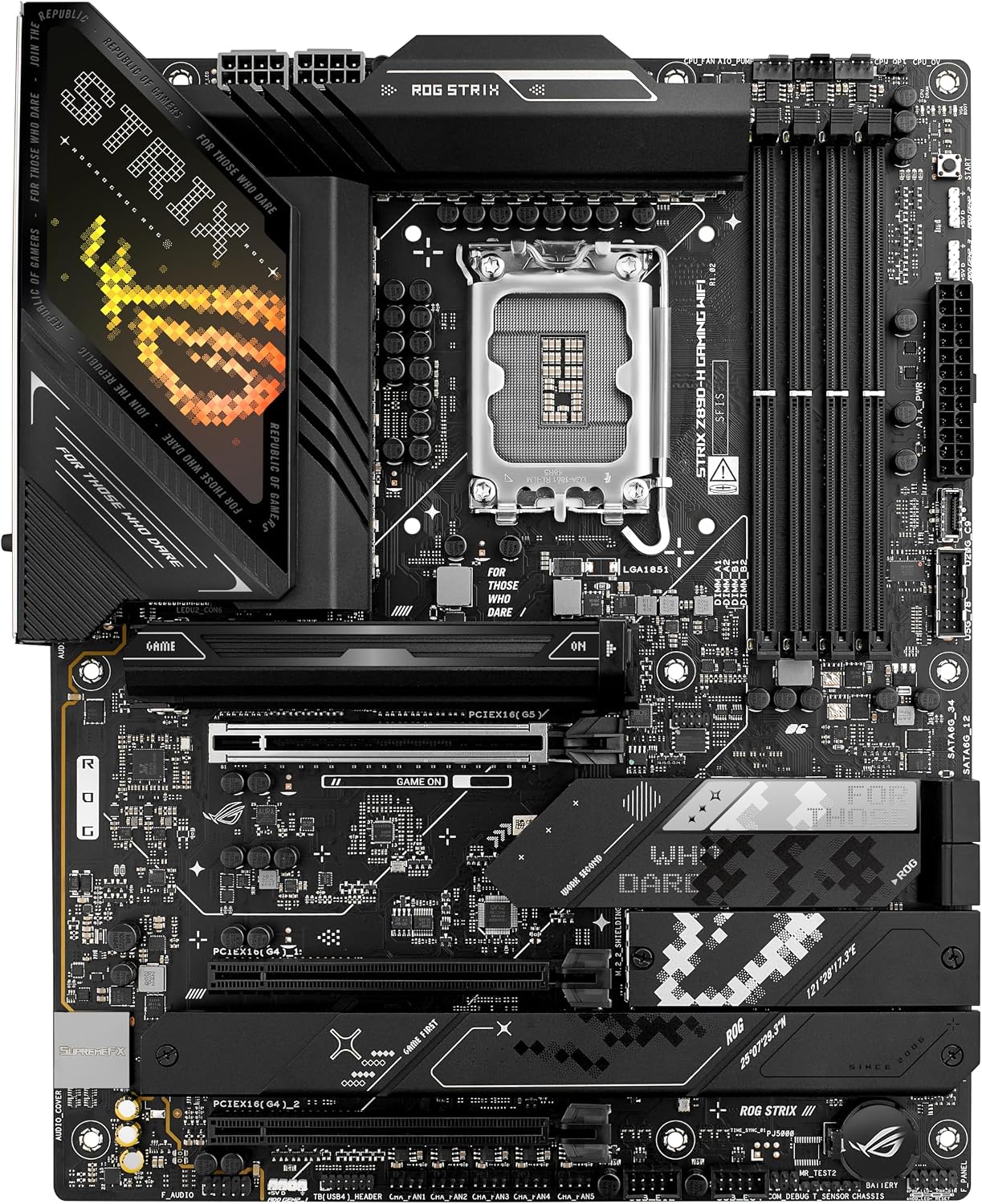

ASUS ROG STRIX Z890-H GAMING WIFI LGA 1851 ATX motherboard

The ASUS ROG STRIX Z890-H GAMING WIFI is an ATX gaming motherboard built on Intel’s Z890 chipset and LGA 1851 socket, designed to support Intel Core Ultra (Series 2) processors. Positioned as the entry-level offering within the enthusiast ROG Strix Z890 family, it provides core overclocking capabilities, high-speed storage, and modern connectivity at a more accessible price point than the Z890-A, -F, or -E models.

Key Specifications & Features

• CPU & Socket: Intel LGA 1851 socket supporting Intel Core Ultra desktop processors (Series 2).

• Power Delivery: 16+2+1+2 teamed power stages with dual ProCool II 8-pin power connectors and large aluminum heatsinks connected via heatpipes.

• Memory Support: 4× DDR5 DIMM slots supporting dual-channel memory speeds up to 9066+ MT/s (OC), CUDIMM/XMP 3.0, and ASUS AEMP III.

• Expansion Slots:

  • 1× PCIe 5.0 x16 SafeSlot (CPU-lanes).

  • 2× PCIe 4.0 x16 slots (running at x4 mode from the Z890 chipset).

• Storage:

  • 4× M.2 slots (1× PCIe 5.0 x4 from the CPU; 3× PCIe 4.0 x4 from the chipset/CPU).

  • 4× SATA 6Gb/s ports.

• Networking: Realtek 5Gb Ethernet and integrated Wi-Fi 7 (802.11be, 160MHz) with Bluetooth 5.4 and ASUS directional Q-Antenna.

• Rear & Front Connectivity: Dual rear USB 20Gbps Type-C ports (one supporting up to 30W Power Delivery / fast charging), front-panel USB 20Gbps Type-C header, USB 10Gbps ports, HDMI, and DisplayPort.

• Audio: Realtek ALC1220P 7.1 HD Surround Sound audio codec paired with a Savitech SV3H712 headphone amplifier and optical S/PDIF output.

• EZ DIY Features: PCIe Slot Q-Release Slim, M.2 Q-Latch / Q-Release, pre-mounted I/O shield, BIOS FlashBack, and rear Clear CMOS buttons.

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (series 2)
• Exclusive AI Technologies: ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II to simplify setup and improve performance
• Exclusive Overclocking & Memory Technologies: NitroPath DRAM Technology, NPU Boost, DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
• Robust Power Solution: 16(80A)+1(80A)+2(80A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Massive heatsinks integrated with the I/O cover, joined by a U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
• Latest M.2 Support: One PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots
