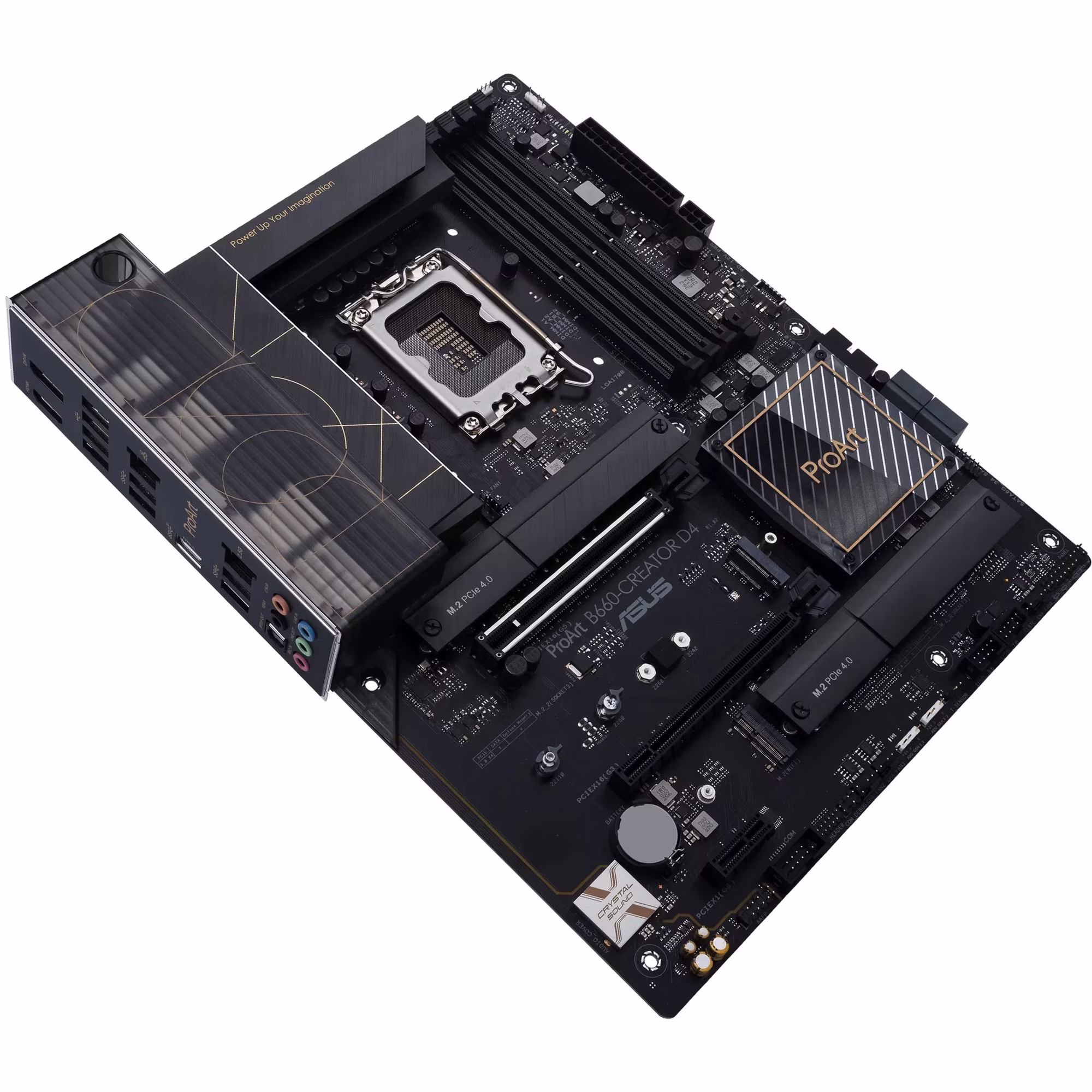

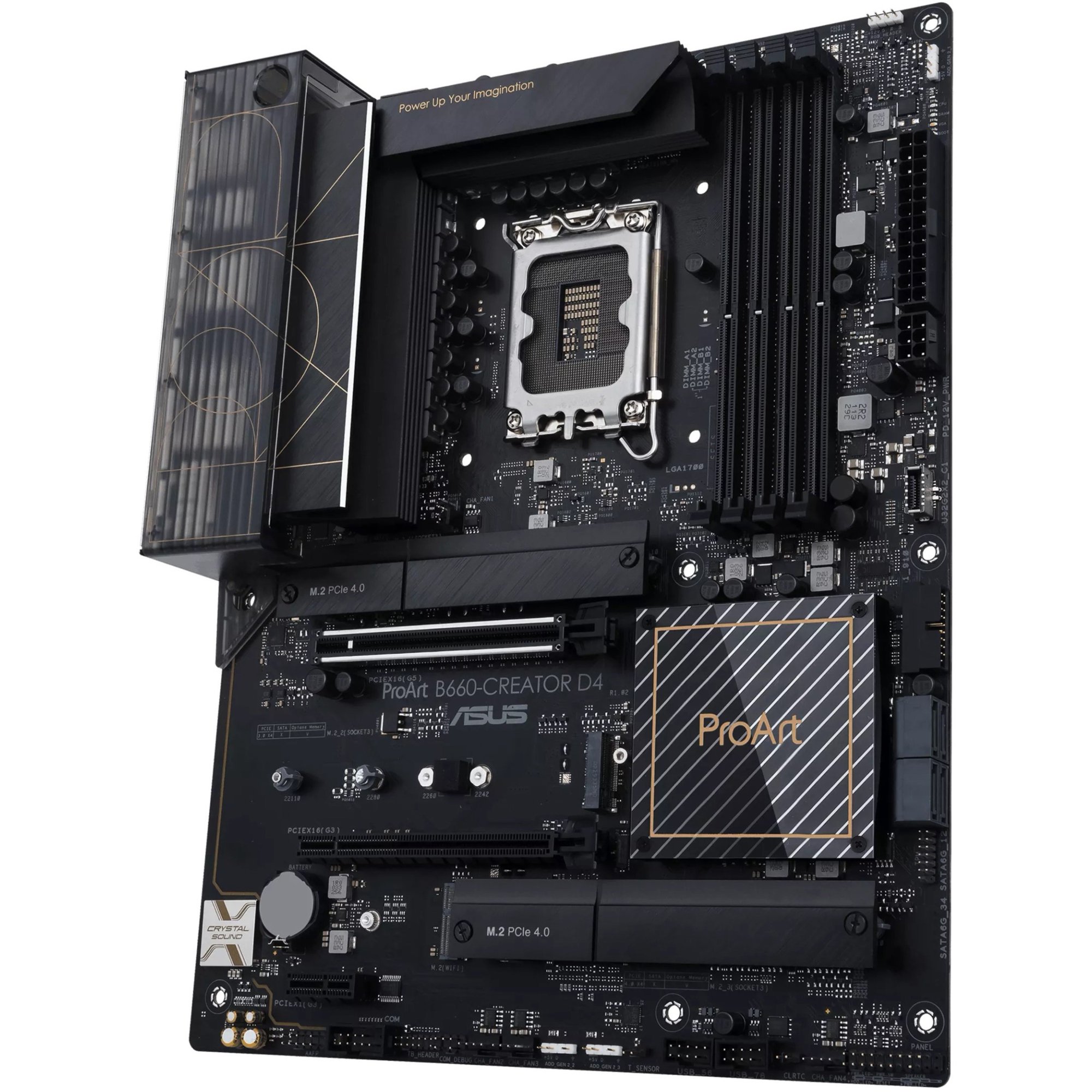

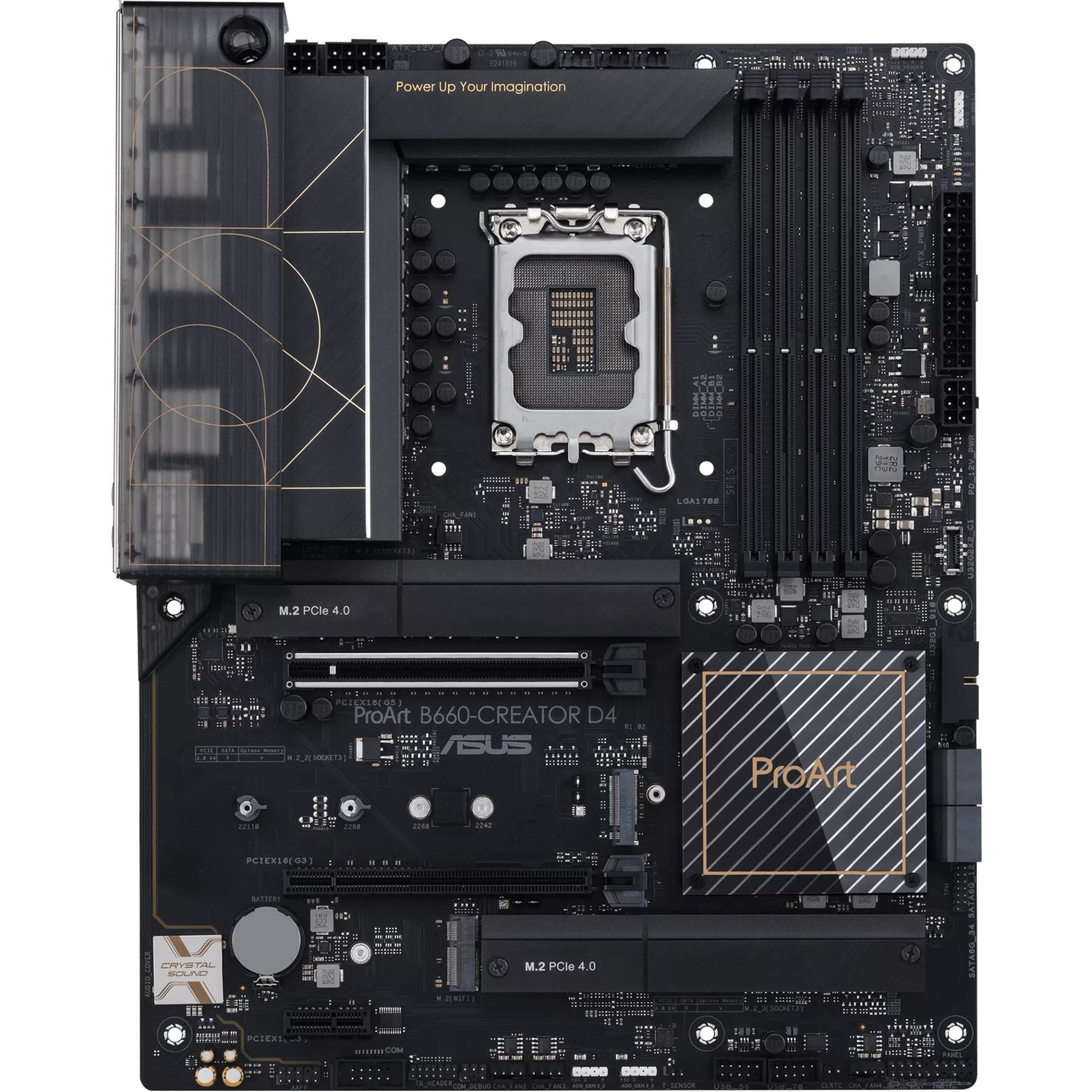

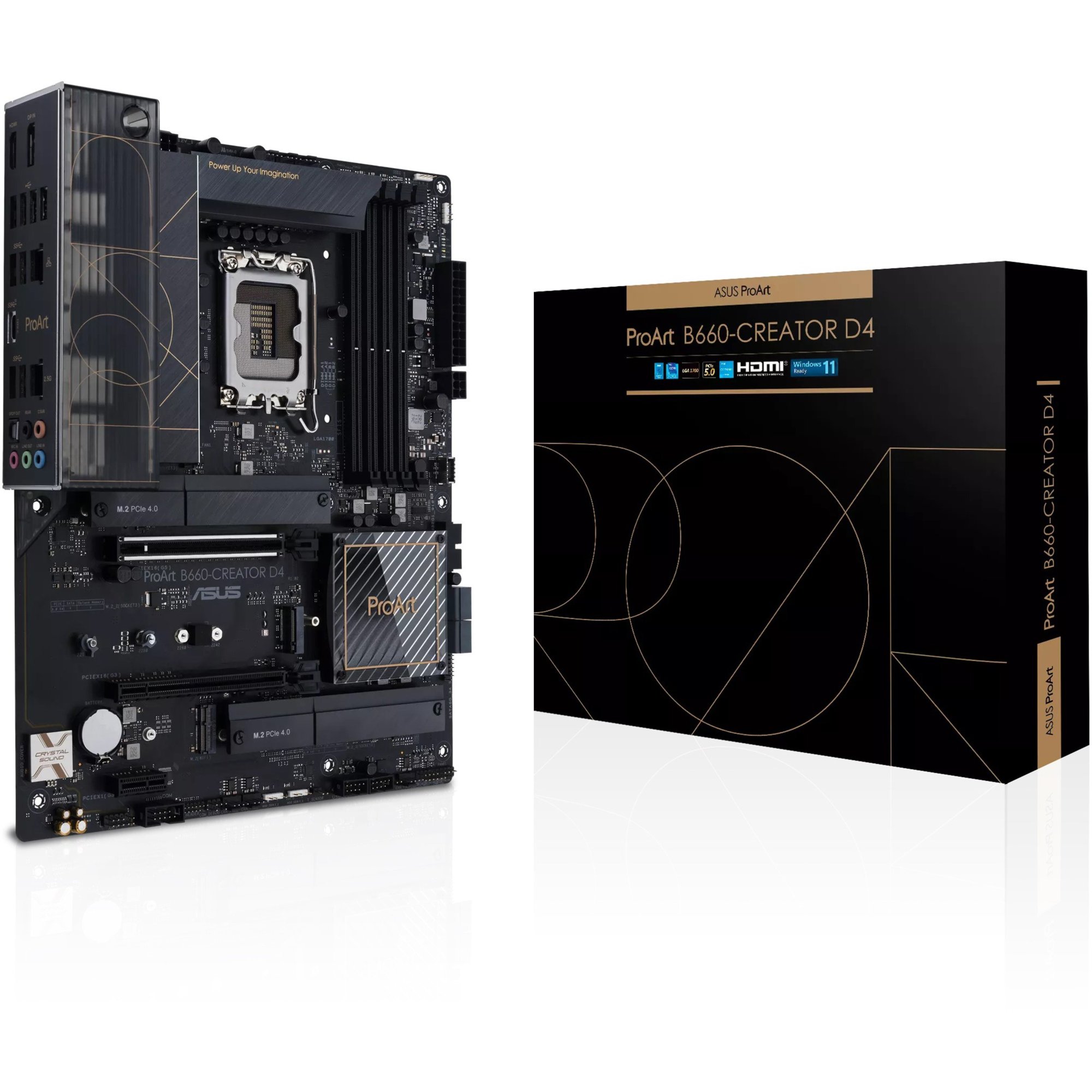

Asus ProArt B660-CREATOR D4 Lga 1700 ATX Motherboard
KSh 30,000.00
- Asus ProArt B660-CREATOR D4 Lga 1700 ATX Motherboard
- Intel LGA 1700 socket: Ready for 14th & 13th Gen Intel Core processors and Windows 11, support PCIe 5.0. BIOS update may be required to boot the 13th gen Intel Core desktop processors
- Extensive connectivity: 2.5Gb & 1Gb onboard Ethernet, 3x M.2 slots and front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support
- Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control
- Trusted stability: Tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability
- PC DIY Friendly: M.2 Q-Latch, Q-connector, Q-DIMM, Q-LED,Pre-mount I/O shield, BIOS FlashBack
Coming Soon
Asus ProArt B660-CREATOR D4 Lga 1700 ATX Motherboard
ProArt B660-Creator D4 is an enhanced motherboard designed for intensive content-creation workloads like 3D rendering and 4K/8K video editing. It unleashes the performance of 14th, 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2×2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

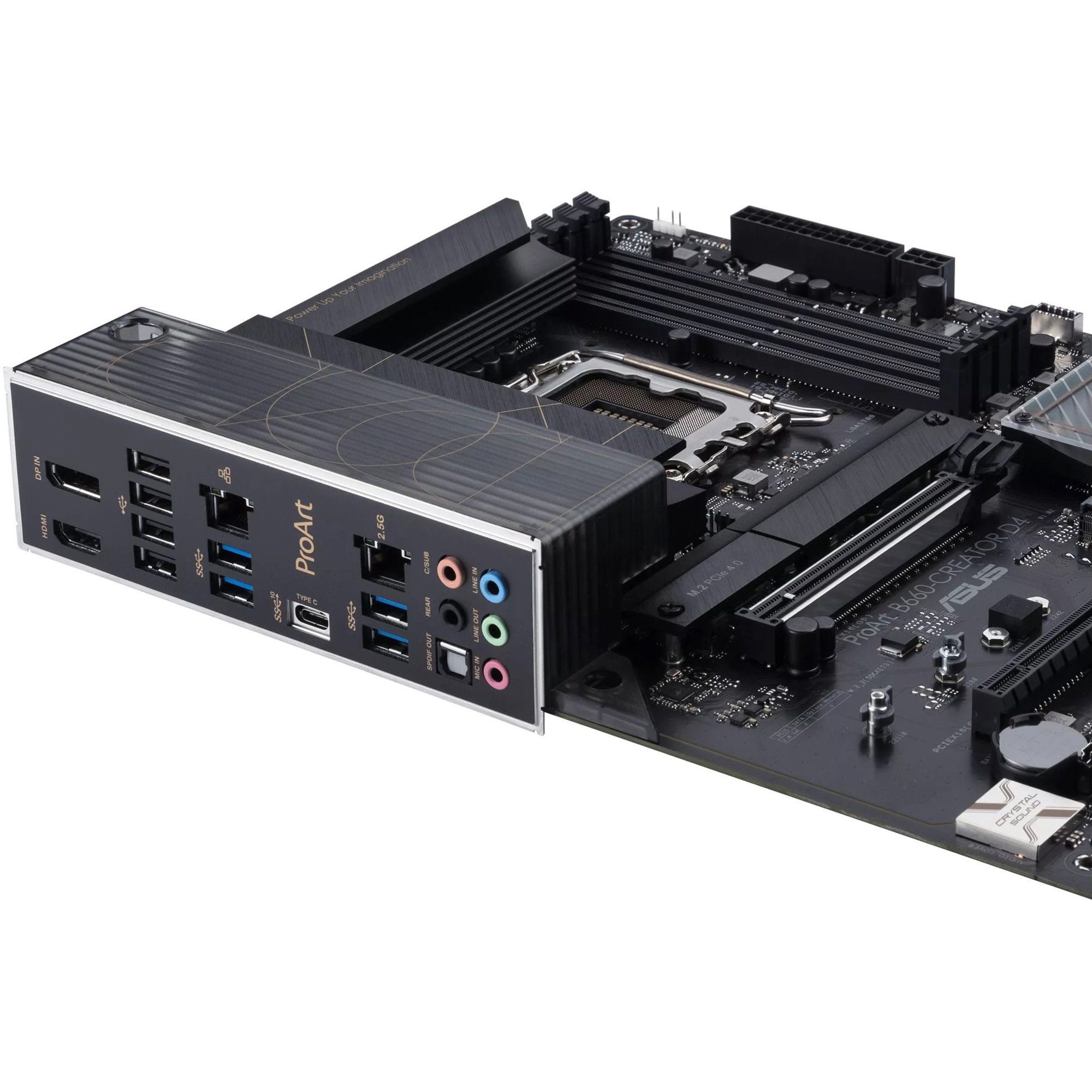

- DisplayPort™ input
- 1 x HDMI™ 2.1 (4K@60Hz)
- 4 x USB 2.0
- 4 x USB 3.2 Gen 1
- 1 x USB 3.2 Gen2 Type-C®
with DisplayPort Alt Mode - 2.5 Gb & 1 Gb Ethernet
- 5 x Audio jacks
- 1 x USB 3.2 Gen 2×2 Type-C front-panel connector (60 W PD / QC 4+)
- 1 x USB 3.2 Gen 1 header
- 4 x SATA 6 Gbps
- M.2 slot (Key E)
- 2 x USB 2.0 connectors
- 3 x Aura addressable gen 2 headers
1 x Aura RGB header - Thunderbolt™ header
Comprehensive Connectivity
An array of powerful I/O ports — including 2.5 Gb and 1 Gb Ethernet ports and three M.2 slots — enables quick data transfers and extensive storage options.
- USB Ports
- Thunderbolt™ 4 Support
- M.2 Storage
- Networking
- M.2 Slot (Key E)
USB-C DisplayPort (DP Alt Mode)
This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.
*This functionality requires the bundled DP-to-DP cable to be connected from an installed graphics card to the DP IN port located on the rear I/O panel of the motherboard.
USB 3.2 Gen 2×2 Type-C® Front-Panel Connector with Quick Charge 4+
A USB 3.2 Gen 2×2 connector boosts Type-C data transfers with speeds of up to 20 Gbps. The connector also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.
Next-Gen Performance
With tailored CPU power delivery and support for high-performance memory, ProArt B660-Creator D4 easily handles the demands of the latest 14th, 13th & 12th Gen Intel® Core™ processors. It features an intelligent VRM design that’s rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.
- Robust Power Delivery
- PCIe 5.0 Ready
- DDR4 Memory
-
Teamed power stages
12+1 power stages rated for 50 amps combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest 14th, 13th & 12th Gen Intel® Core™ processors demand.
-
Digi+ Power Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
-
ProCool power connector
The ASUS ProCool socket is built to exacting specifications to ensure flush contact with PSU power lines, enabling lower impedance and better heat dissipation.
-
Chokes & capacitors
Premium alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
Optimized Cooling Design
Maintaining system stability under heavy loads is of paramount importance, so ProArt B660-Creator D4 features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.
- Heatsinks
- Headers
- VRM heatsinks
Two VRM heatsinks are placed above the MOSFETs and chokes to further increase surface area for heat dissipation.
- M.2 heatsinks
Two M.2 heatsinks cover three M.2 slots to keep M.2 SSDs at the optimal operating temperature for consistent performance and reliability.
- Chipset heatsink
A dedicated chipset heatsink draws heat away to help ensure that temperatures stay within an optimal range.
Perfect for Content Creation
ProArt exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that enable a smoother workflow.
- Industry-Leading Security
- ProArt Creator Hub
- CreationFirst
- Two-Way AI Noise Cancelation
ASUS Control Center Express software offers advanced security management functions to protect the system and confidential data.
USB port management
Enable or disable USB ports or set them to Read Only to prevent data leaks.
Software blacklist
For added security, a software blacklist is available to help identify high-risk applications.
Registry editor enabled/disabled
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.
Trusted Stability
ProArt B660-Creator D4 is engineered and rigorously tested to offer superior quality, stability and compatibility ― all to ensure that it empowers creativity for years to come.
24/7
Reliability
-
168-hour
Durability Test
-
45°C
Ambient Temperature
-
80%
Relative Humidity
Extensive Compatibility Validation
-
520+
DDR4 compatibility
-
1000+
Compatible devices
-
800+
Validation hours
- Intel® Socket LGA 1700 for 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
- Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, ThunderboltTM header support, USB-C DisplayPortTM and a USB 3.2 Gen 2×2 front panel connector with Quick Charge 4+
- Next-gen performance: 12+1 power stages rated for 50 amps, PCIe® 5.0 ready
- Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
- ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
- Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express
