Description

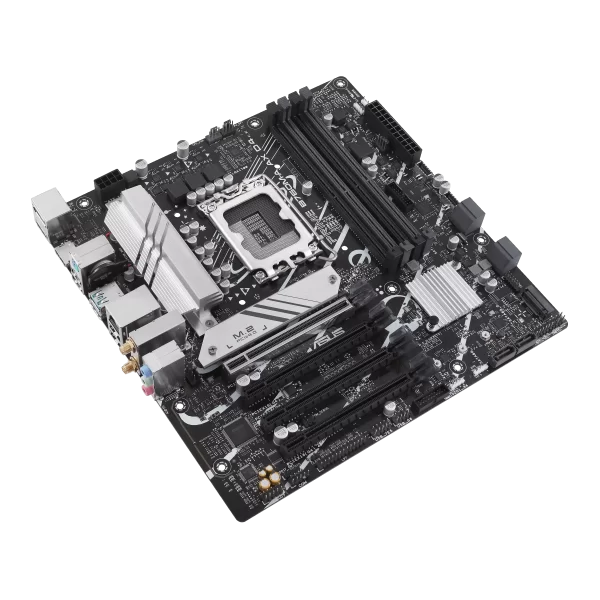

B760M-A D4
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Specification
- 1 x DisplayPort™
- 2 x HDMI® ports
- PS/2 combo port
- 2 x USB 2.0 ports (Type-A)
- 2 x USB 3.2 Gen 2 ports (Type-A)
- 2 x USB 2.0 ports (Type-A)
- Realtek 2.5G Ethernet
- 3 x Audio Jacks
- Expansion Slots
- 1 x PCIe® 4.0 x16 (max @x16 mode)
SafeSlot Core+ - 1 x PCIe® 4.0 x16 (@x4 mode)
- 1 x PCIe® 4.0 x16 (@x1 mode)
- 1 x PCIe® 4.0 x16 (max @x16 mode)
- 1 x LPT header
- 2 x Addressable Gen 2 headers
- DDR4 support
- Dual Channel
- OptiMem II
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- 1 x USB 3.2 Gen 1 Type-C®
- 1 x USB 3.2 Gen 1 header
- 2 x M.2 slots
- 1 x M.2 2280 (PCIe® 4.0 x4 mode)
- 1 x M.2 2280 (PCIe® 4.0 x4 mode)
- 1 x Addressable Gen 2 header
- 1 x Aura RGB header
- 1 x USB 3.2 Gen 1 header
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Mode
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments, so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions, or share them with friends.

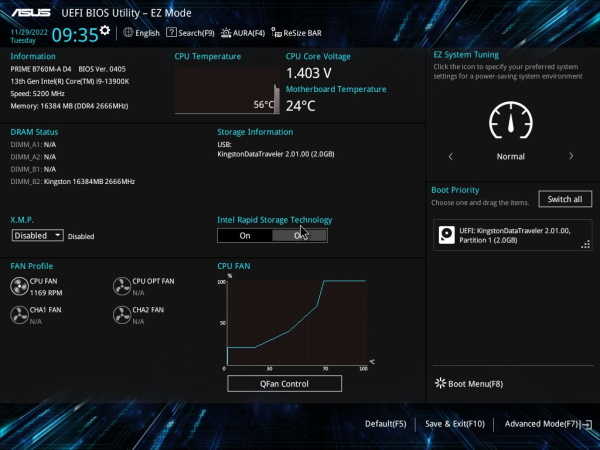

EZ Mode
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
COOLING
PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Cooler by Design
PRIME B760 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
PERFORMANCE
The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-A D4 is geared to cater to the demands of these high-core-count CPUs.
Storage

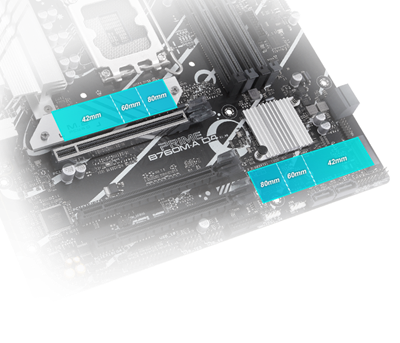

Two M.2 Slots (up to 64 Gbps)
The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
