Description

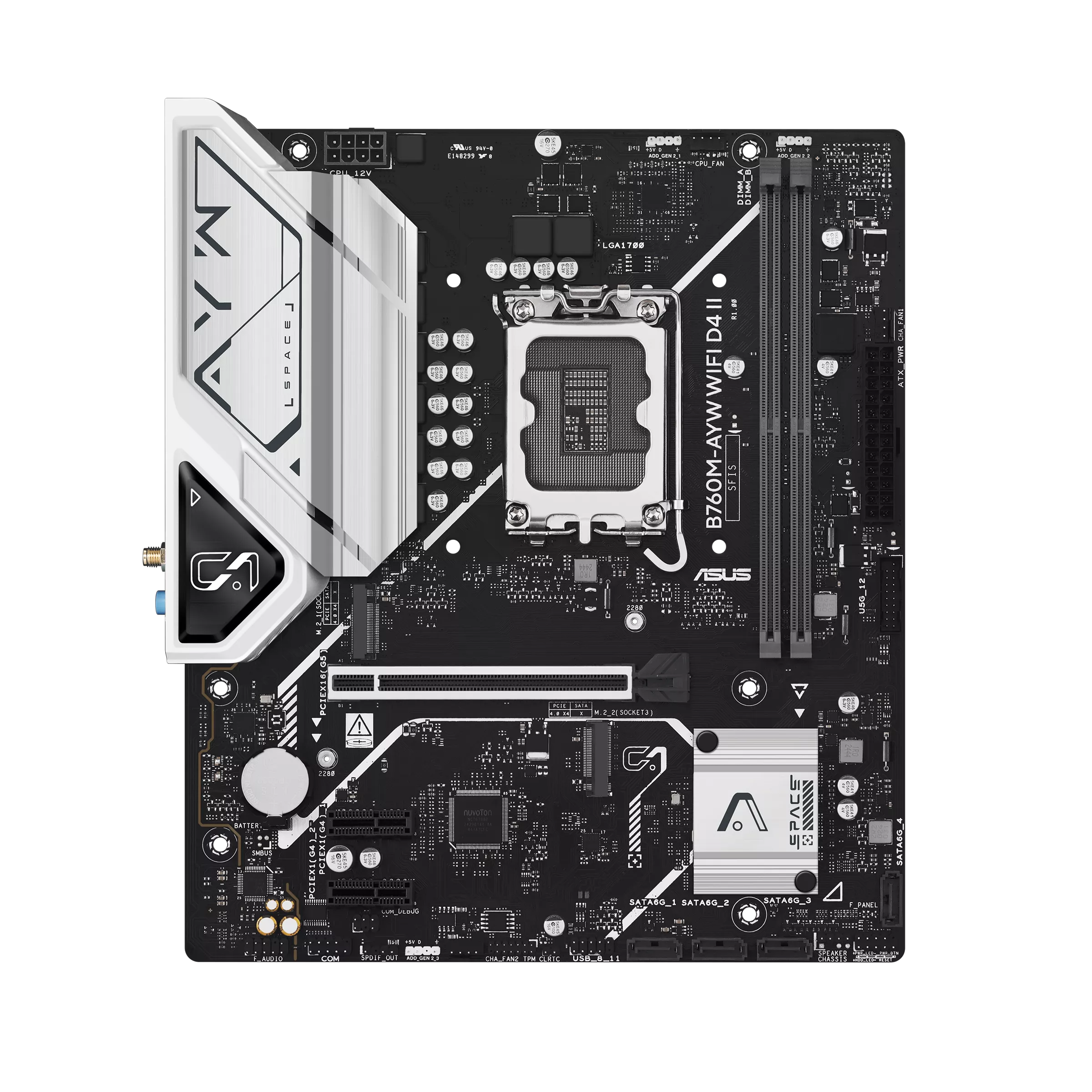

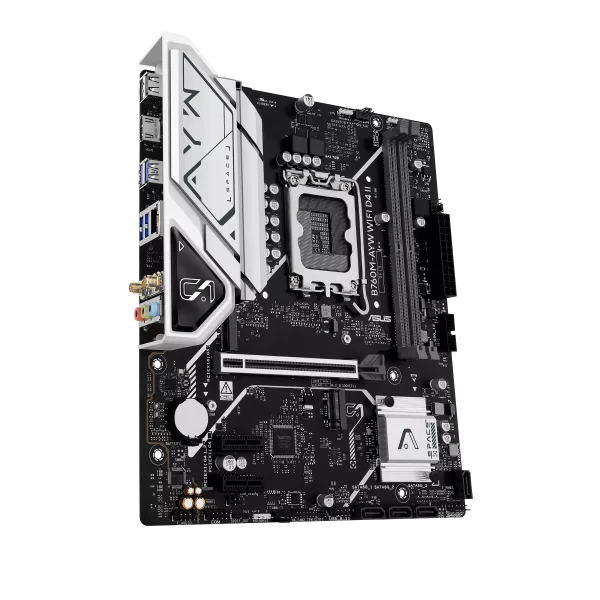

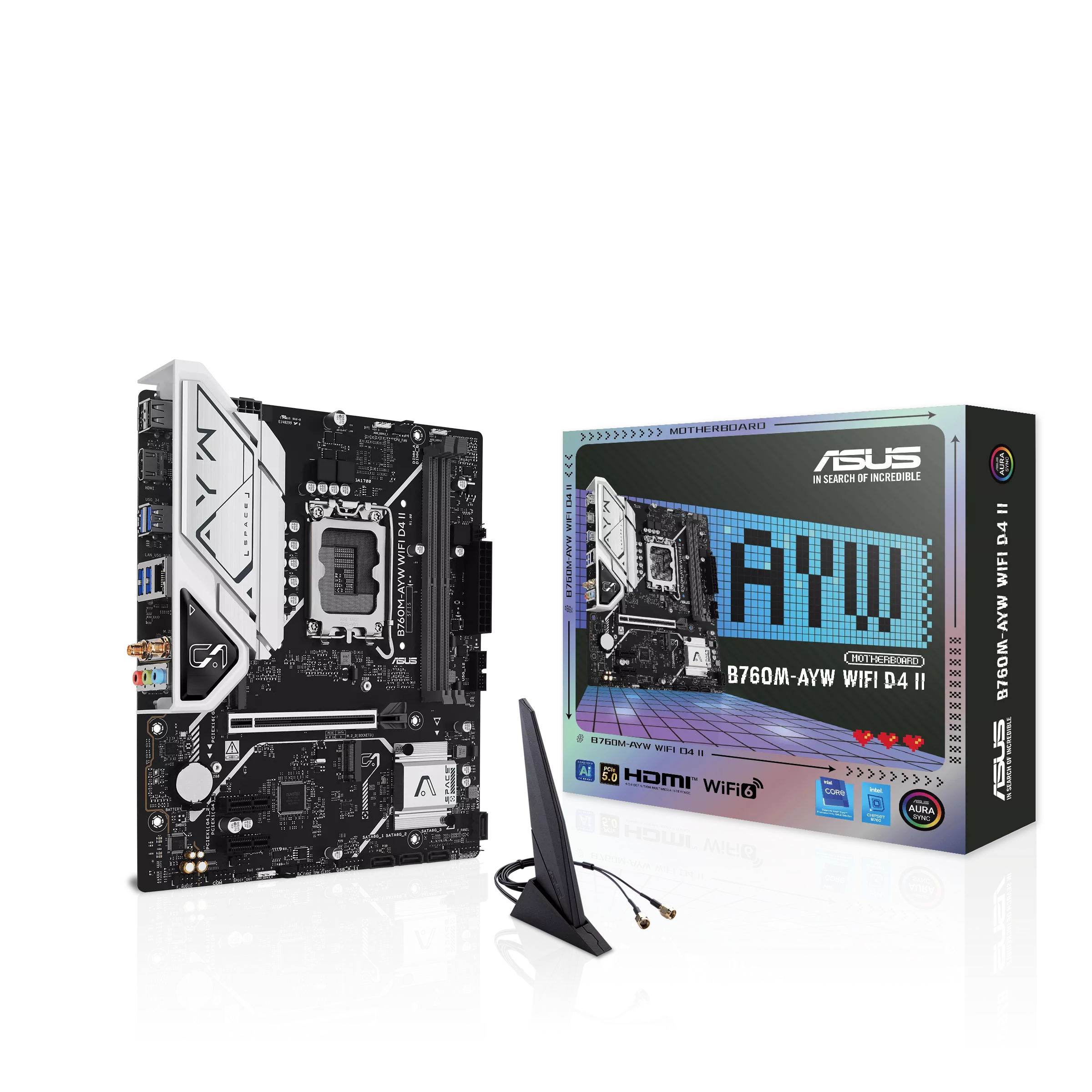

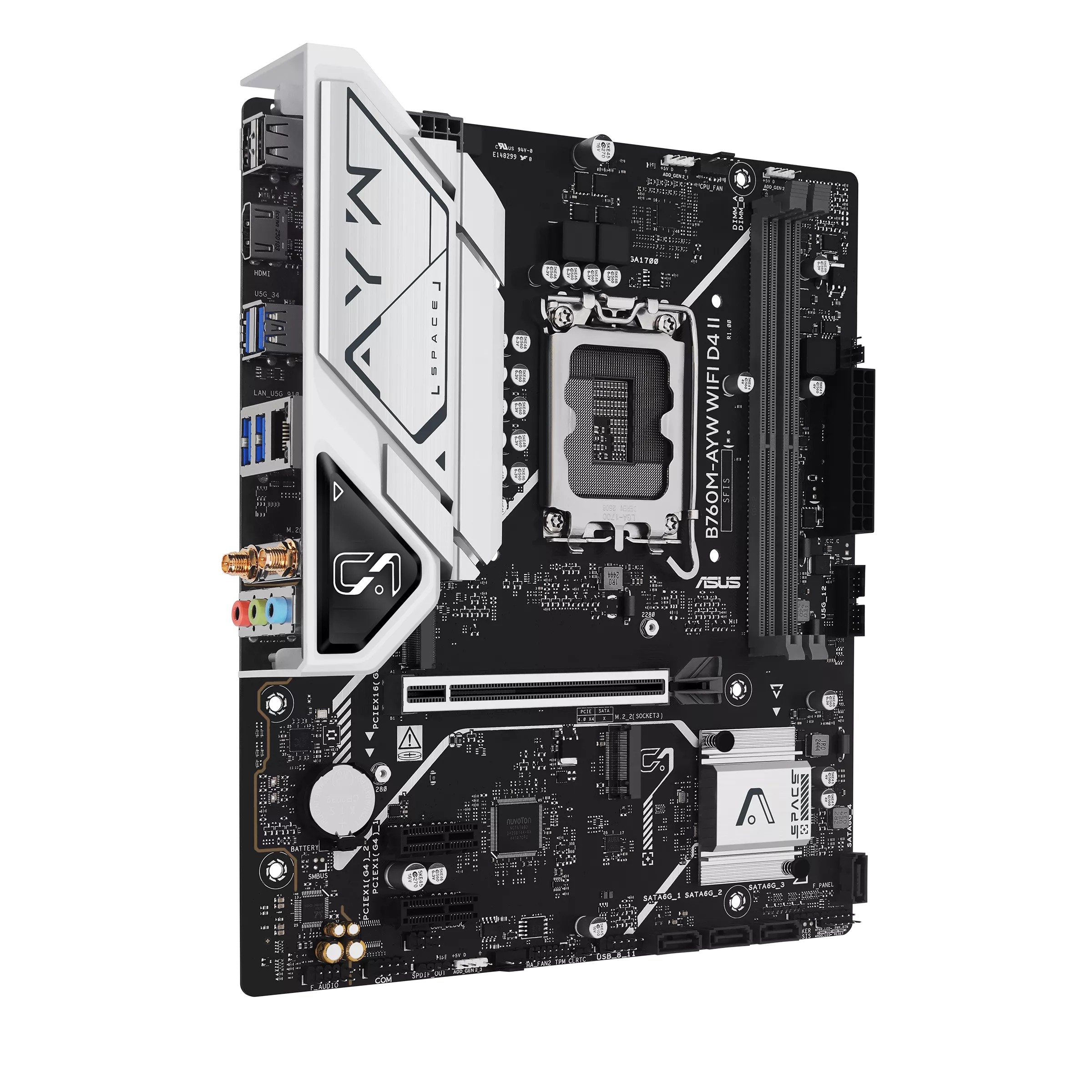

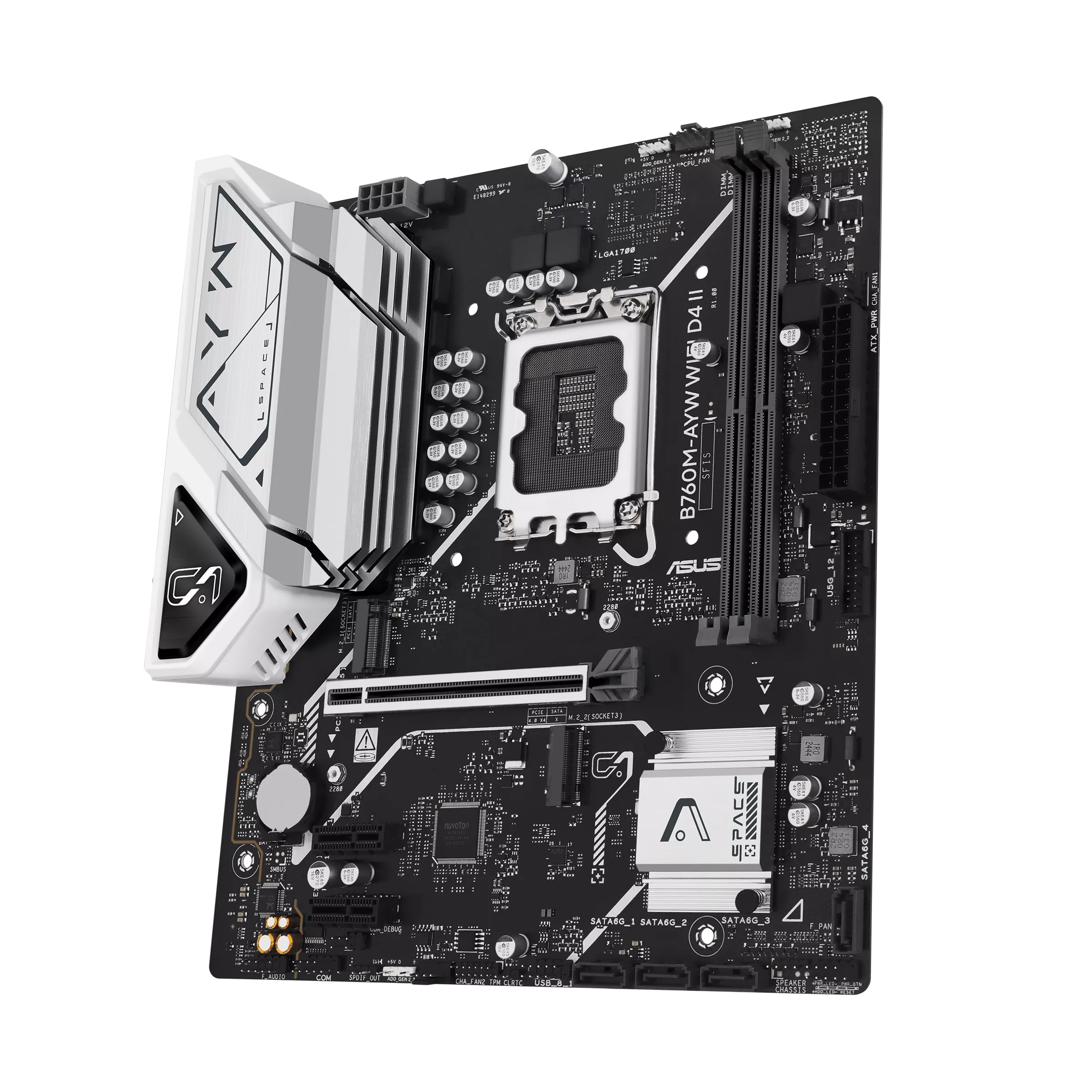

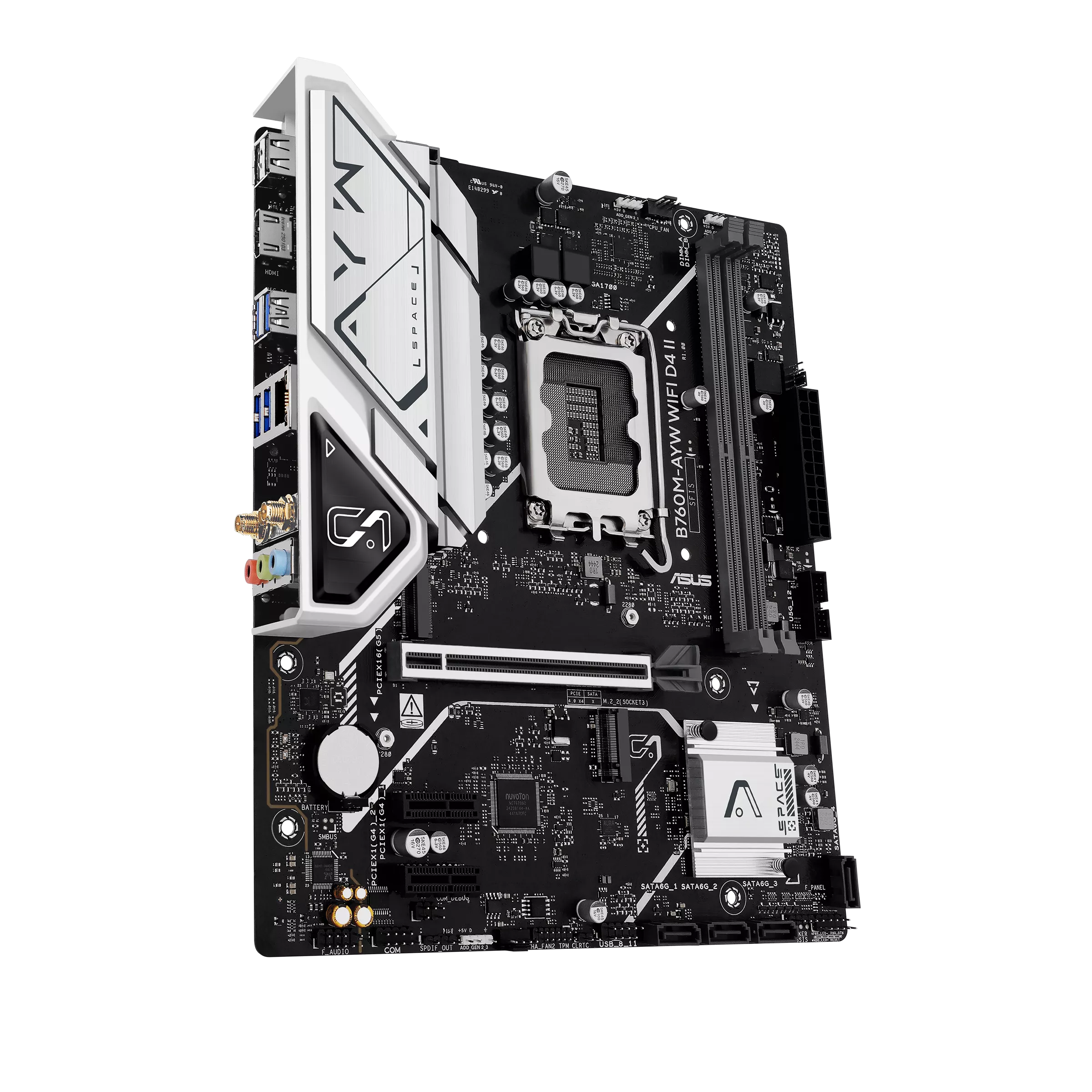

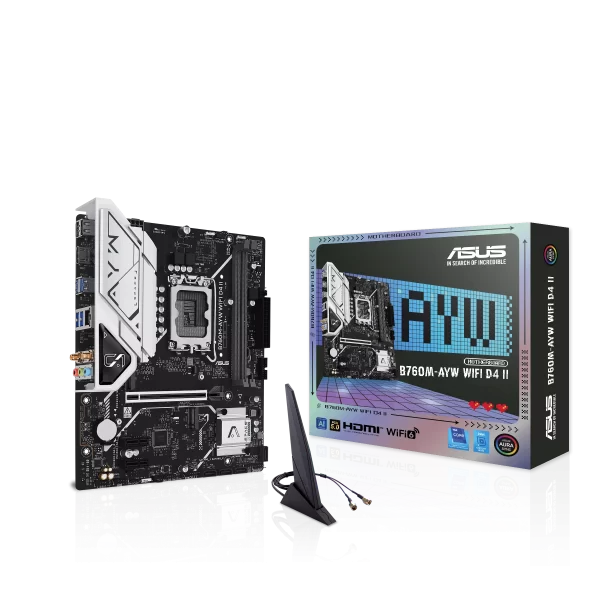

ASUS B760M-AYW WIFI D4 II, an Intel® B760 LGA 1700 mATX motherboard with PCIe 5.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, WiFi 6, HDMI™, SATA 6Gb/s, front USB 5Gbps, Aura Sync
- Ready for Advanced AI PC:Â Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
- Ultrafast Connectivity:Â PCIe 5.0, two PCIe 4.0 M.2 slots , Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 5Gbps Type-A, front USB 5Gbps support
- Comprehensive Cooling:Â VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting:Â Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
B760M-AYW WIFI D4 II
ASUS B760 series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, B760M-AYW WIFI D4 II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
-

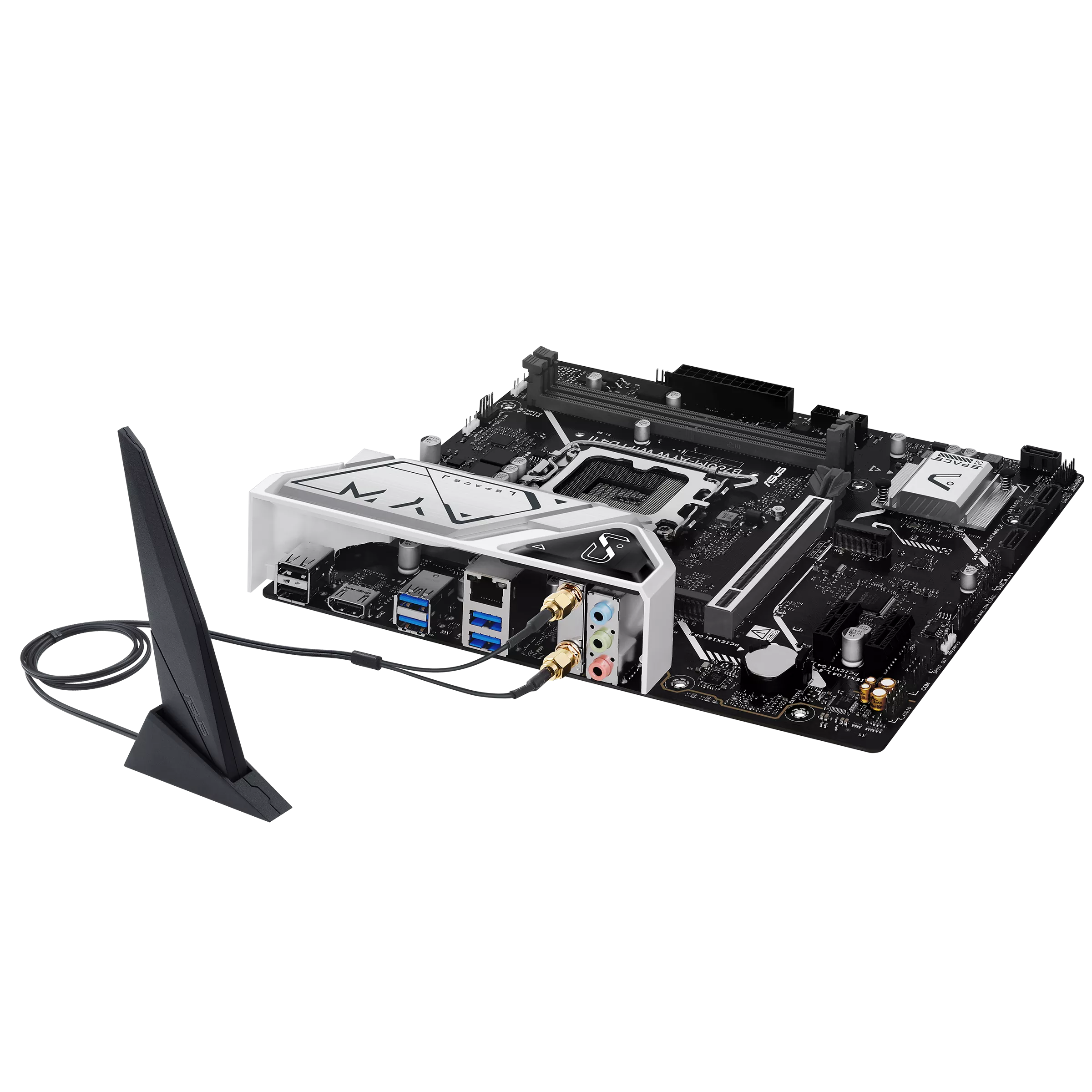

2 x USB 2.0 ports (type-A)
-
1 x HDMI™ port
-
4 x USB 5Gbps ports (Type-A)
-
Realtek 2.5Gb Ethernet
-
Wi-Fi 6
-
3 x Audio Jacks
-
Expansion Slots
• 1 x PCIe 5.0 x16 slot
• 2 x PCIe 4.0 x1 slots -
1 x Addressable Gen 2 header
-
8-pin ProCool connector
-
2 x Addressable Gen 2 headers
-
DDR4 support
• Dual Channel -
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
-
1 x USB 5Gbps header
-
2 x M.2 slots
• M.2_1 slot (Key M) 2280 (PCIe 4.0 x4 mode)
• M.2_2 slot (Key M) 2280 (PCIe 4.0 x4 mode) -
4 x SATA 6Gb/s ports
-
1 x USB 2.0 header
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS B760 series. The B760M-AYW WIFI D4 II motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Flexible Air-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fan. There’s an Extreme Quiet mode that reduces fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fan can also be controlled via the UEFI BIOS.
COOLING
B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Heatsink
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.
PERFORMANCE
The B760 series are built to handle the high core counts and bandwidth demands of 14th, 13th and 12th Gen Intel® Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel® processors. The B760M-AYW WIFI D4 II is geared to cater to the demands of these high-core-count CPUs.
ProCool Connector
Proprietary connectors augment the motherboard’s link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
