Description

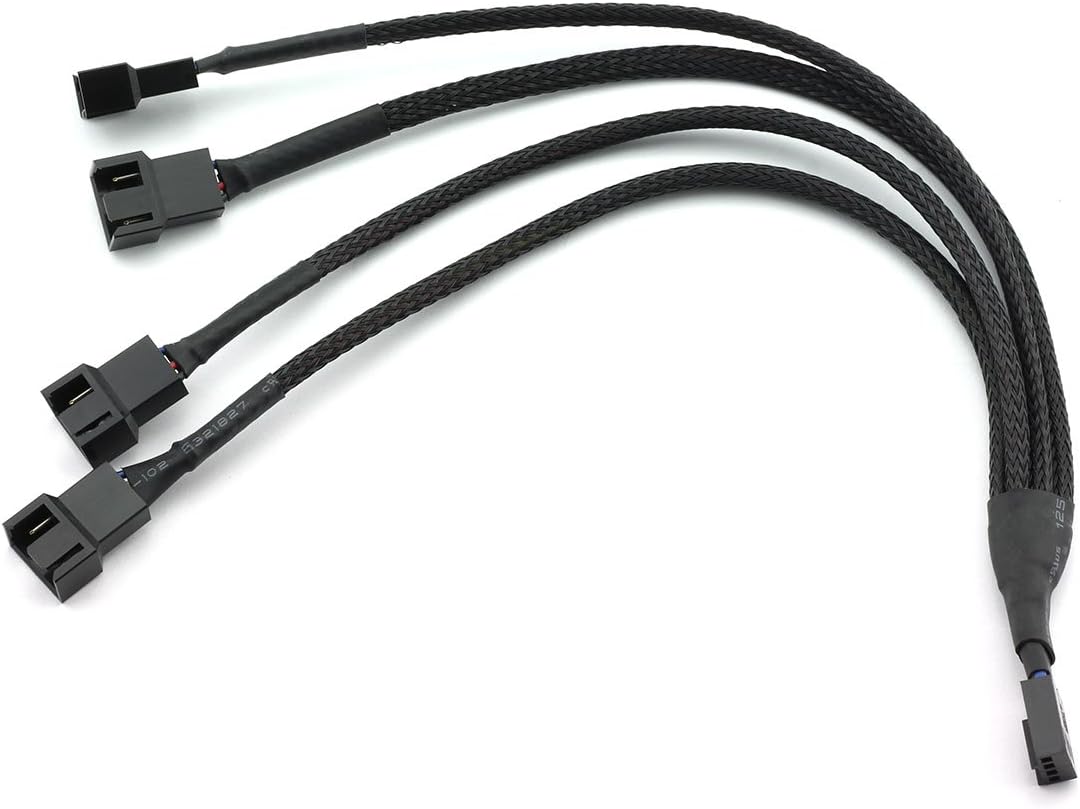

Name: 4Pin 1 to 4 Ways PWM Fan Splitter Cable

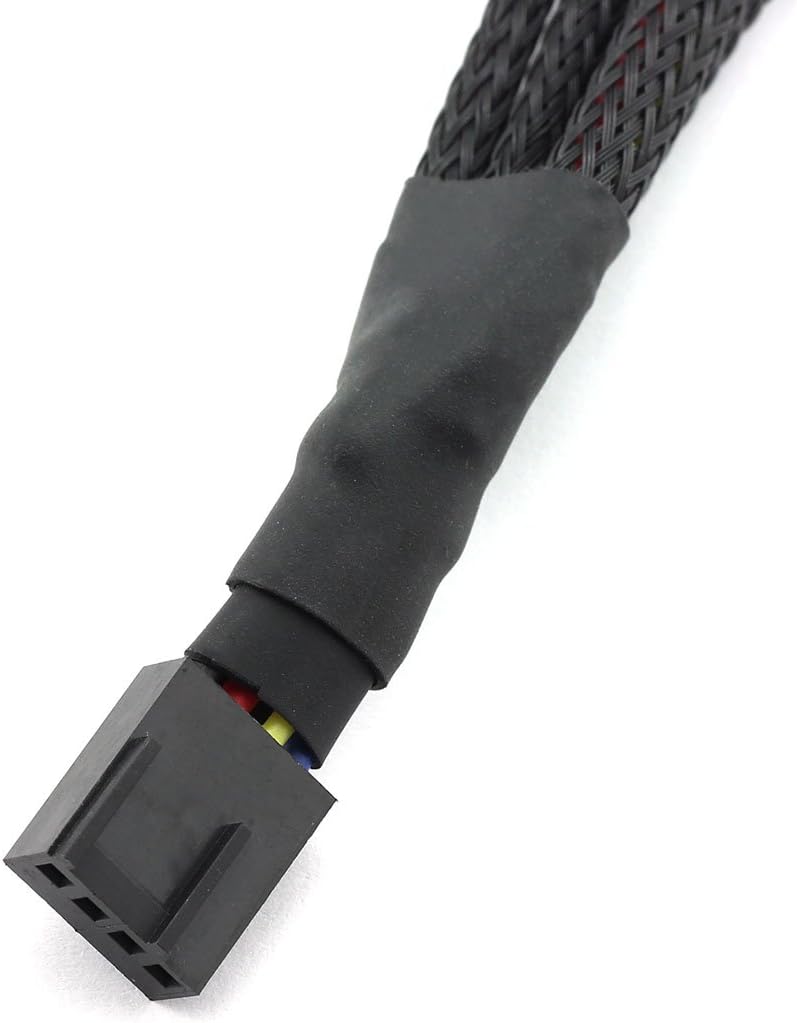

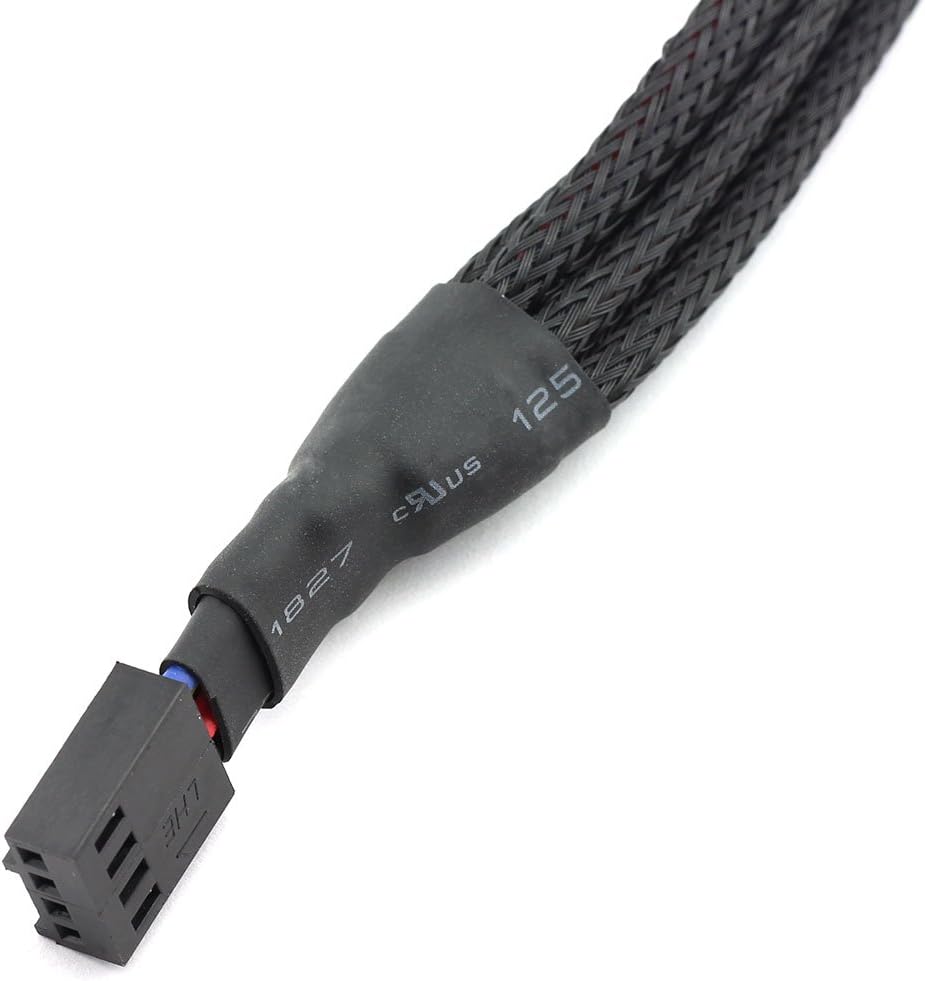

Connector: 1x Mainboard 4Pin Female Socket

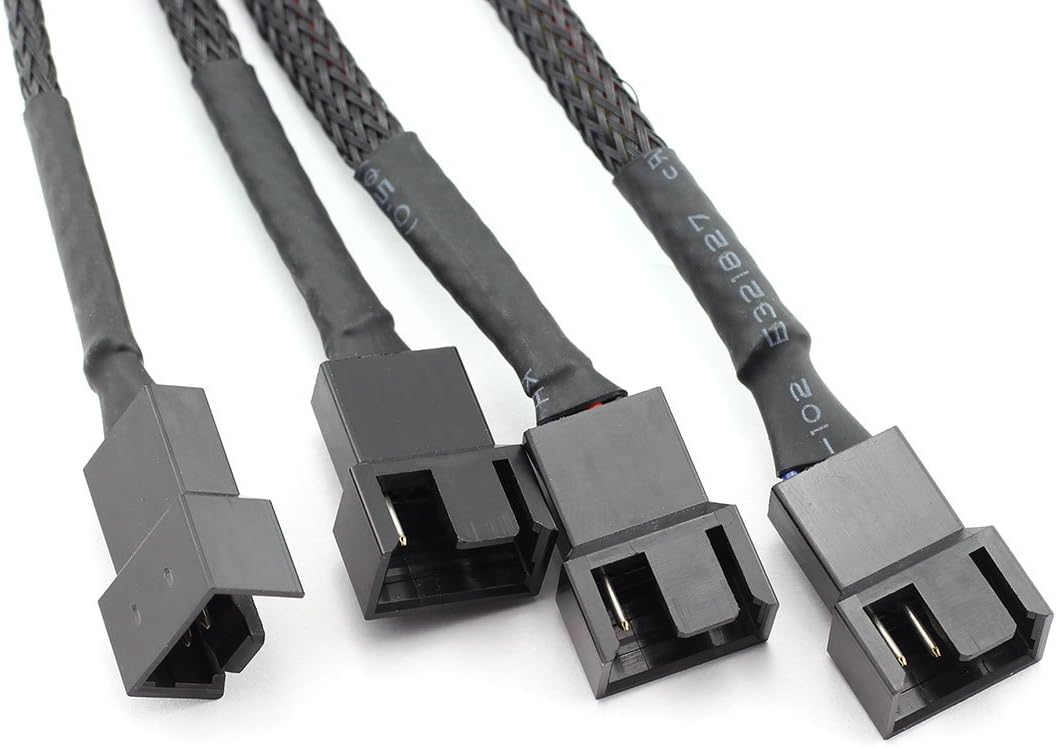

4x Fan 4Pin Male Plug
(4Pin: Power supply, speed control, speed detection, 3Pin: Power supply, speed control)
Length: 27cm/10.5″
Cable: 1007 24AWG, high density black sleeved cable
Insulation Material: PVC
Conductor: 11×0.12TS
Conductor Material: Tinned copper
Wire Diameter: OD1.4MM
Rated Temperature: 80 Degree
Color: Black
Function: Make the computer fan share an interface to realize power supply and PWM speed control, lengthen and extend the motherboard 4pin interface.

4Pin male splitter wire connection:
4Pin: Blue, Yellow, Red, Black
3Pin: Blue, Red, Black

Package Include:
1pcs 4Pin 1 to 4 Ways PWM Fan Splitter Cable
