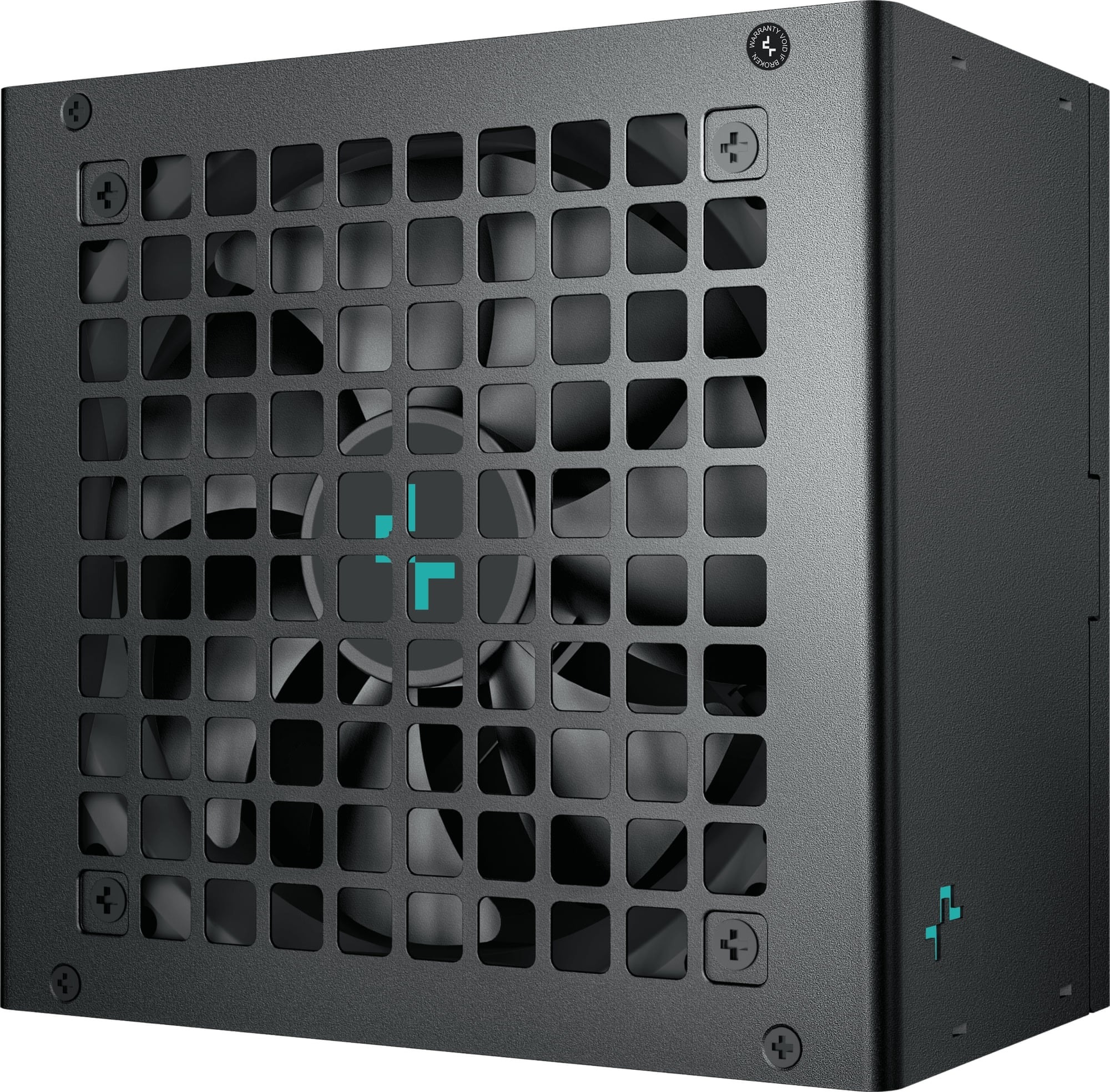

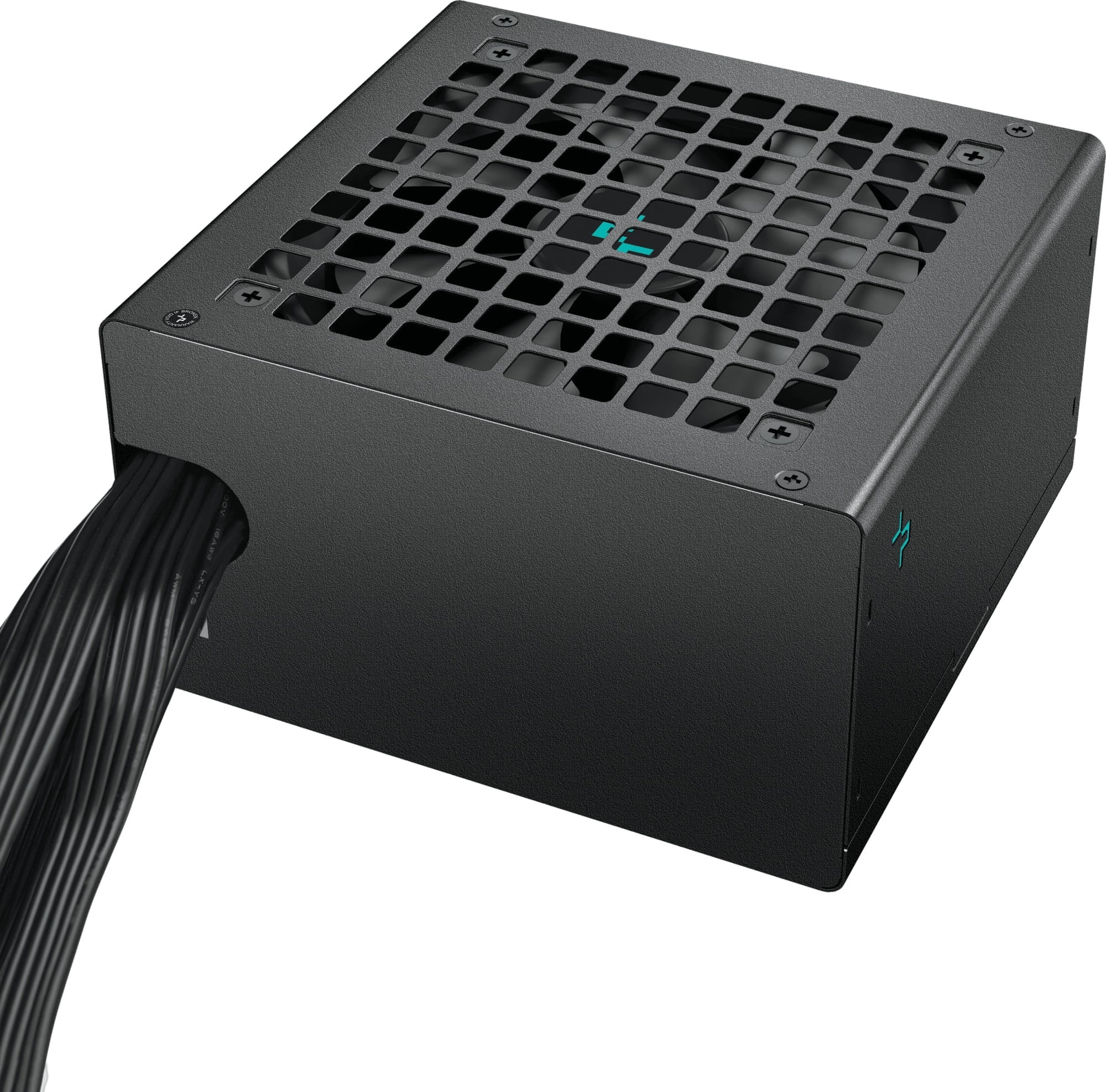

DeepCool PL800D 800W 80 Plus Bronze ATX 3.0 Desktop Power Supply

The PL800D updates DeepCool non-modular PSUs with a 12V-2×6 cable and brings them into compliance with INTEL’s ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.

Technical Spec
Type: ATX12V V3.1
Product Dimensions: 150×140×86mm (W x L x H)
Efficiency certification: 80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II 级
Fan Size: 120mm
Fan Bearing: HYB(Hydro Bearing)
Topology: Active PFC+DC to DC
Capacitors: Chinese Electrolytic Capacitors
Power Good Signal: 100-150ms
Hold Up Time: ≥16ms
Efficiency: ≥85% Under Typical Load(50% Loading)
Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature: 0 – 40℃
Regulatory: CE/FCC/CCC/RCM/EAC/
CAN ICES-003(B)/NMB-003(B) /TUV-RH
Erp Regulation: ErP 2014
Environment Protection: WEEE/中国 RoHS/Triman/P65
MTBF: 100,000 Hours
