ASUS Z890 AYW Gaming WiFi W Intel Core Ultra LGA 1851 ATX White Motherboard

ASUS Z890 AYW Gaming WiFi W Intel Core Ultra LGA 1851 ATX White Motherboard.

KSh 38,000.00

ASUS Z890 AYW Gaming WiFi W Intel Core Ultra LGA 1851 ATX White Motherboard.
Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (series 2)
Robust Power Solution: 12+1+2+1 80A DrMOS power stages with ProCool power connectors, 6-layer PCB, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: DDR5 memory, Wi-Fi 6, PCIe 5.0, rear USB 20Gbps Type-C, front panel USB 20Gbps Type-C with up to 30W PD/PPS Fast-charge and USB Wattage Watcher, Thunderbolt (USB4) header support
Optimized Thermal Design: Large VRM heatsinks, M.2 and PCH heatsinks, hybrid fan headers and Fan Xpert 4 with AI Cooling II
Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with cooling solutions
DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Dashboard, Q-LED, BIOS FlashBack button, BIOS FlashBack LED and pre-mounted I/O shield

WhatsApp us

Category: Motherboard Tag: intel motherboard

Description

Z890
AYW GAMING WIFI W

ASUS Z890 series motherboards are expertly engineered to unleash the full potential of the latest Intel^® Core^™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the Z890 AYW GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

* CEC Tier II ready

12(80A) + 1(80A) + 2(80A) + 1(80A)

power stages with enlarged VRM heatsinks

AI Solutions

for advanced AI capabilities

AEMP III

for enhanced DDR5 performance

WiFi 6

for stable WiFi connection and lower latency

USB PD 3.0

for up to 30W PD/PPS Fast-charge

PCIe 5.0 slots

for graphics card and storage

EZ PC DIY

for easier build customization

Pre-mounted
I/O shield

for safeguarding ports and enhancing aesthetics

Aura Sync

for full RGB lighting control

Performance

AI Solutions

ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance, AI Cooling II for automated temperature control.

AI Advisor

ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.¹

AI Cooling II

Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

Performance

NPU Boost

The integrated NPU in Intel^® Core^™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.²

Performance

Robust power design

Stable power is crucial for maximizing the performance of Intel^® Core^™ Ultra Processors (Series 2). The Z890 AYW GAMING WIFI W is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel^® processors.

VCCCORE power
(80A, DrMOS)

VCCGT power
(80A, DrMOS)

VCCSA power
(80A, DrMOS)

VNNAON power
(80A, DrMOS)

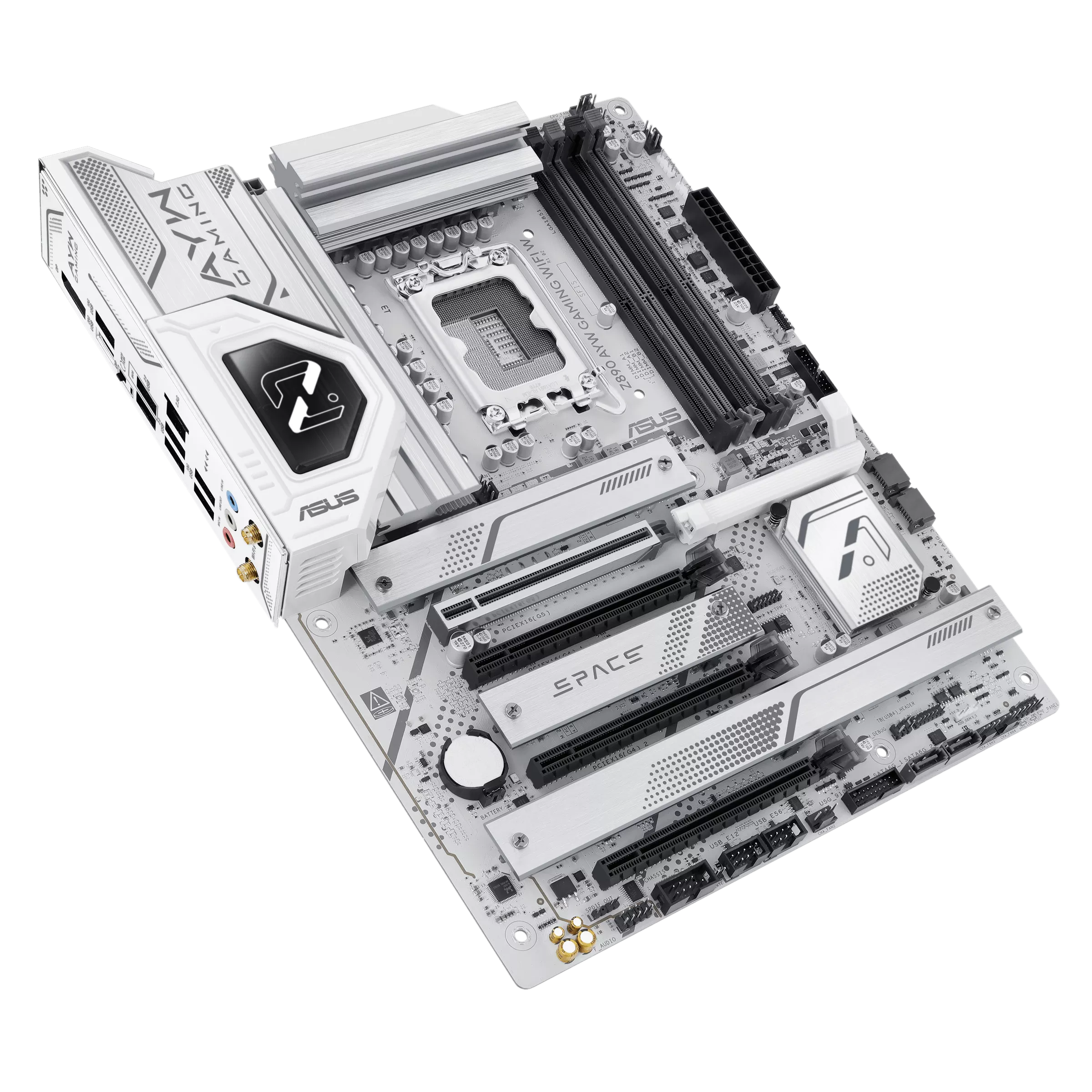

Angled top-down view of Z890 AYW GAMING WIFI W motherboard.

Six-layer PCB design

Enhanced stability and overclocking.

ProCool connectors

Proprietary 8 + 8 pin connectors improve PSU connection.

Graphic depicting ProCool solid pin connectors.

Power Saving

Optimize power with CPU, lighting, and fan settings.

Digi+ VRM control

Real-time voltage control.

Enhanced Memory & Storage Performance

AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.³

AEMP III

8,000 (OC)

Intel DDR5 Baseband

6,400

Up to

25%

DIMM Fit / DIMM Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

Learn more about DIMM Fit Pro

Graphic marking the location of DIMMs and showing the UI of the feature DIMM Fit / DIMM Fit Pro.

Four M.2 slots (up to 128Gbps)

The Z890 AYW GAMING WIFI W offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, three that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.⁴

Graphic depicting different M.2 slots on a motherboard.

Cooling

Cooler by design

The Z890 AYW GAMING WIFI W motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Cooling

Smart cooling precision

ASUS Fan Xpert 4

ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.

Cooler compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.⁵

See compatible AIO coolers

A Z890 motherboard and AIO cooler on a table.

Flexibility

Empowering connections

The Z890 AYW GAMING WIFI W motherboard offers a versatile range of connectivity, including support for WiFi 6, the latest version of PCI Express, while an arsenal of USB ports includes Type-C connections which expands compatibility and bandwidth even further.

WiFi 6

2.5Gb Ethernet

PCIe 5.0

USB PD 3.0

PCIe 5.0 slot

USB 20Gbps

USB 20Gbps Type-C^®

The Z890 AYW GAMING WIFI W comes loaded with two USB 20Gbps Type-C^® connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O, this port can also supports external 4K DisplayPort video output; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.

WiFi 6

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it’s optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.⁶

Learn more about WiFi 6

Wireless WiFi 6 adapter

1.2Gbps

Other wireless adapters

0.86Gbps

PCIe 5.0 slot

The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

PCIe 5.0 x16

512Gbps

PCIe 4.0 x16

256Gbps

PCIe 3.0 x16

128Gbps

Customization

Personalization

The Z890 AYW GAMING WIFI W enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

TurboV Core

Intuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.

ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

Addressable Gen2 RGB headers

Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

Image depicting Z890 AYW GAMING WIFI W ARGB connectors.

Customization

DIY friendly

The Z890 AYW GAMING WIFI W motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

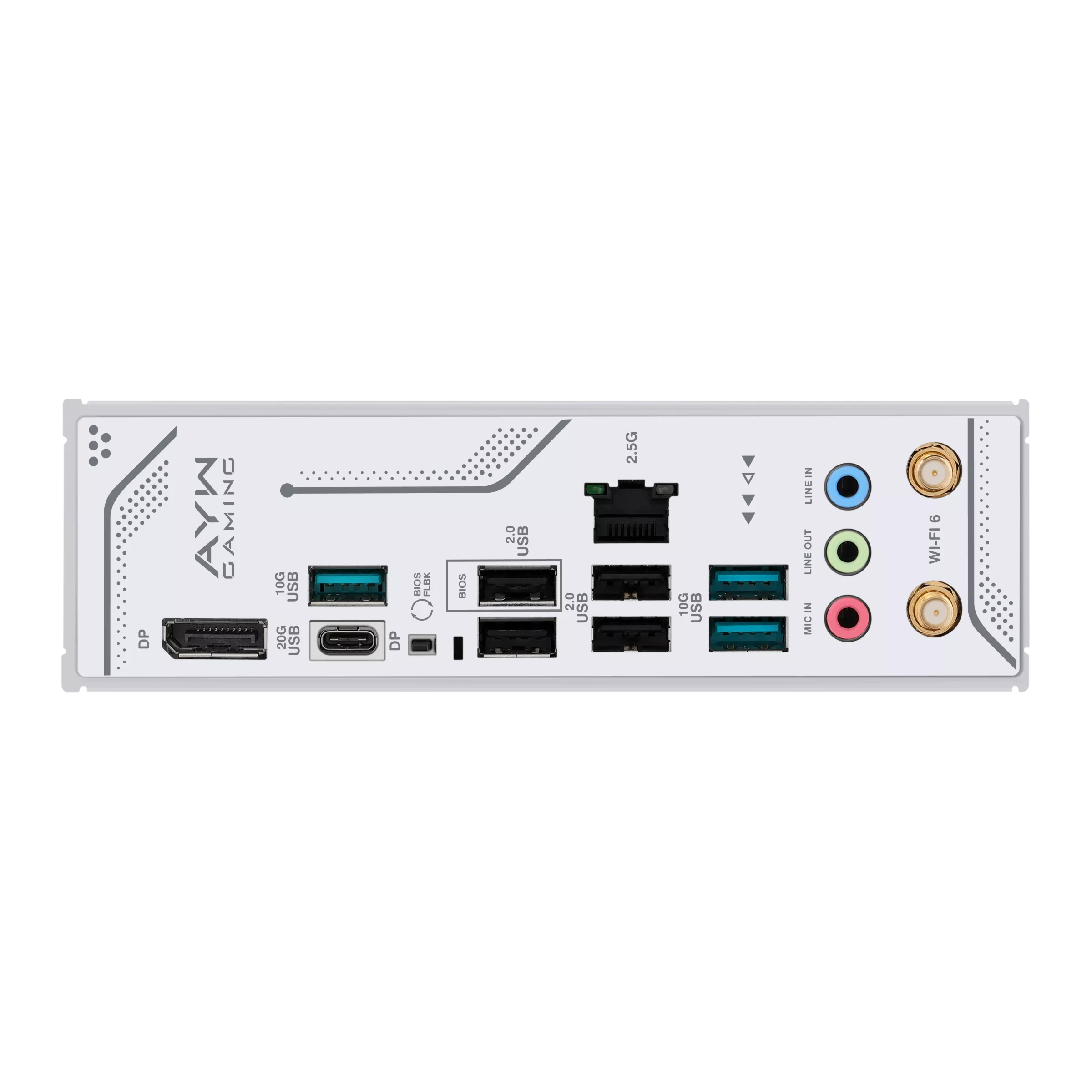

Pre-mounted
I/O shield

Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

BIOS FlashBack^™

BIOS FlashBack^™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack^™ port, and press a button — no CPU or memory needed.

SafeSlot

PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

Additional information

BRAND	ASUS
CONDITION	BRAND NEW
